Taurac emergency lighting connector for Blessing to Etap

Article number NOVELPL22
zoom_in Zoom

  • Description

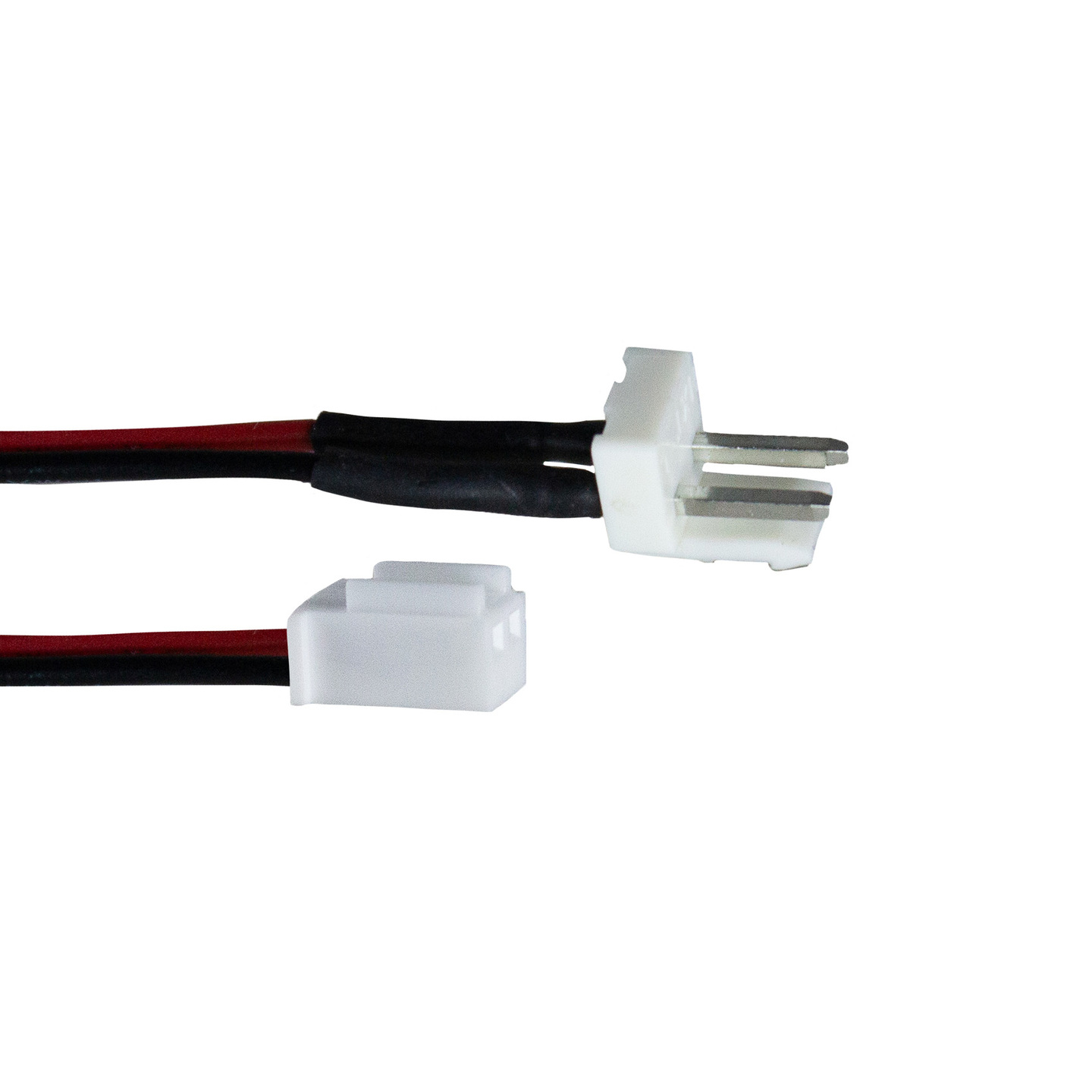

    Emergency lighting connector for Blessing to Etap. Counter plug pl04 with wire and plug pl15

    Type
    NOVELPL

  • Specifications

    • Brand Taurac
    • Article number NOVELPL22
    • Kind Faston
    • Connection 2 Pins
    • Model Bus
    • Rated voltage (V) 600
    • Rated current (A) 6
    • Number of poles 2
    • Degree of protection (IP) IP20
    • Connection type Crimp
    • Cable diameter (mm) 2,05 - 2,35
    • Connection cross section (fine-strand) (mm²) 0,34 - 0,34
    • Connection cross section (solid-core) (mm²) 0,30 - 0,35
    • Number of connections per pole 1
    • Pole codification L, N
    • Colour coding/contact insert Other
    • Max. continuous temperature resistance contact part (°C) 105
    • Max. continuous temperature resistance strain relief (°C) 105
    • Housing material Other
    • Halogen free Yes
    • Fire load (kWh) 0,10
    • Contact material CuSn
    • Surface coating contacts Galvanised
    • Pollution degree 2
    • Continuity resistance (mOhm) 12
    • Rated surge voltage (kV) 4
    • Length (mm) 4,25
    • Height (mm) 3,95
    • Width (mm) 3,20
    • Rechargeable No
    • Unit Piece
    • Minimum order quantity 1
    • Order multiple 1
    • Warranty (months) 12
