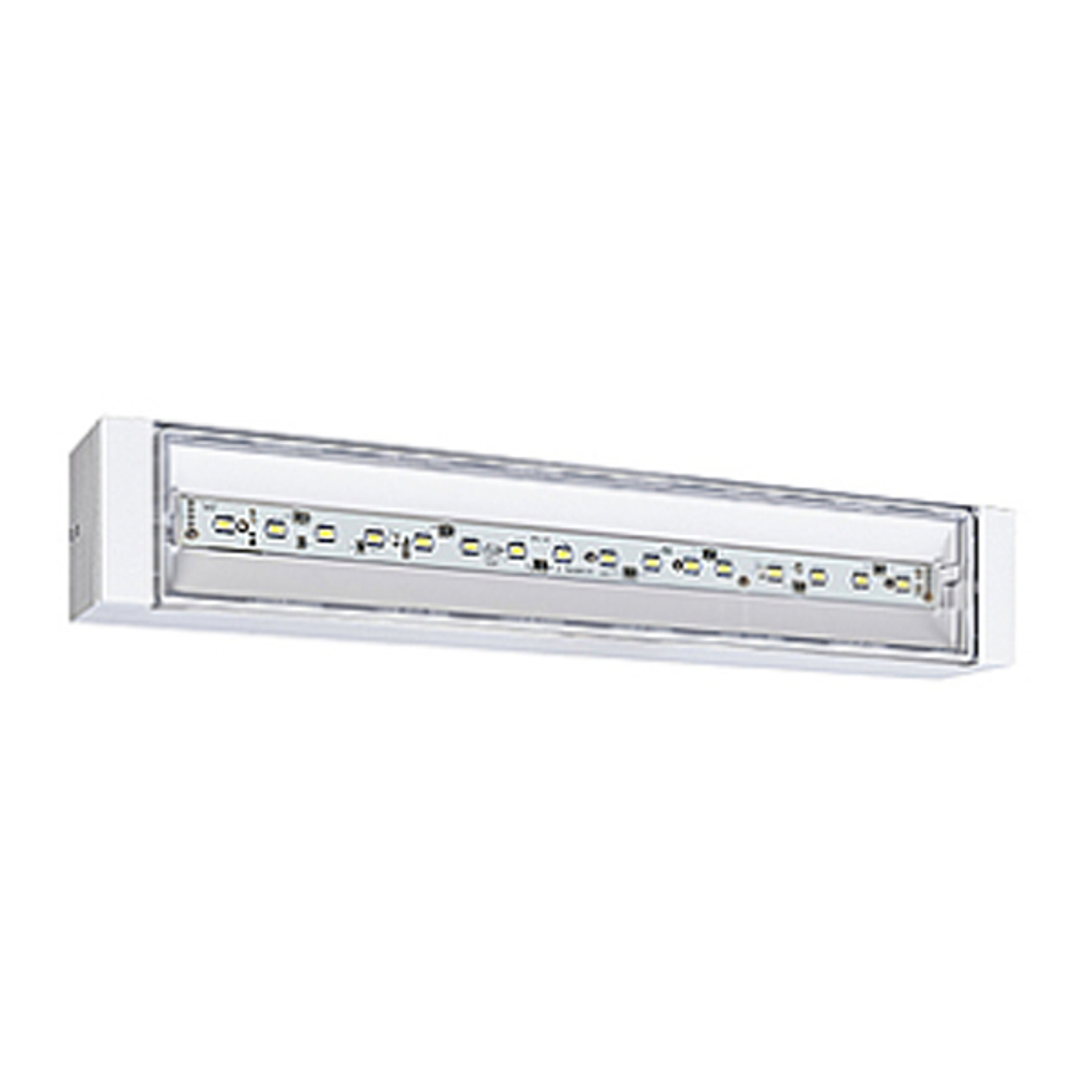

Universal London Self contained Ceiling surface mounted. Automatic self test Escape route IP65

Article number PO7D212112
zoom_in Zoom

  • Description

    Universal London is a surface-mounted luminaire and, in combination with recessed frame A561407, can also be installed as a recessed luminaire This luminaire from the Taurac premium line was developed from the working and thinking world of the installer. The right match for your application: solution-oriented in providing information, safe and efficient and easy to install.

    Type
    London

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5 keurmerk_6

  • Downloads

    descriptionDownload Factsheet descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Premium
    • Article number PO7D212112
    • Kind Surface mounted ceiling / wall escape route
    • Mounting method Ceiling surface mounting
    • Function Escape route lighting
    • Battery technology NiMH
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Plastic, transparent
    • Voltage type AC/DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Rated lifetime L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP65
    • Impact strength IK04
    • Protection class according to IEC 61140 II
    • Max. system power (W) 3,60
    • Luminous flux in standby mode (lm) 350
    • Power factor 6
    • Nominal operation time (h) 1 - 1
    • Width (mm) 336
    • Height/depth (mm) 54
    • Length (mm) 59
    • Type of wiring Suitable for loop-through wiring
    • Connection type Plug-in connection
    • Attribute Self contained, Auto test, Standard
    • Unit Piece
    • Minimum order quantity 1
    • Order multiple 1
    • Warranty (months) 60
Article number PO7D212112

Universal London Self contained Ceiling surface mounted. Automatic self test Escape route IP65
