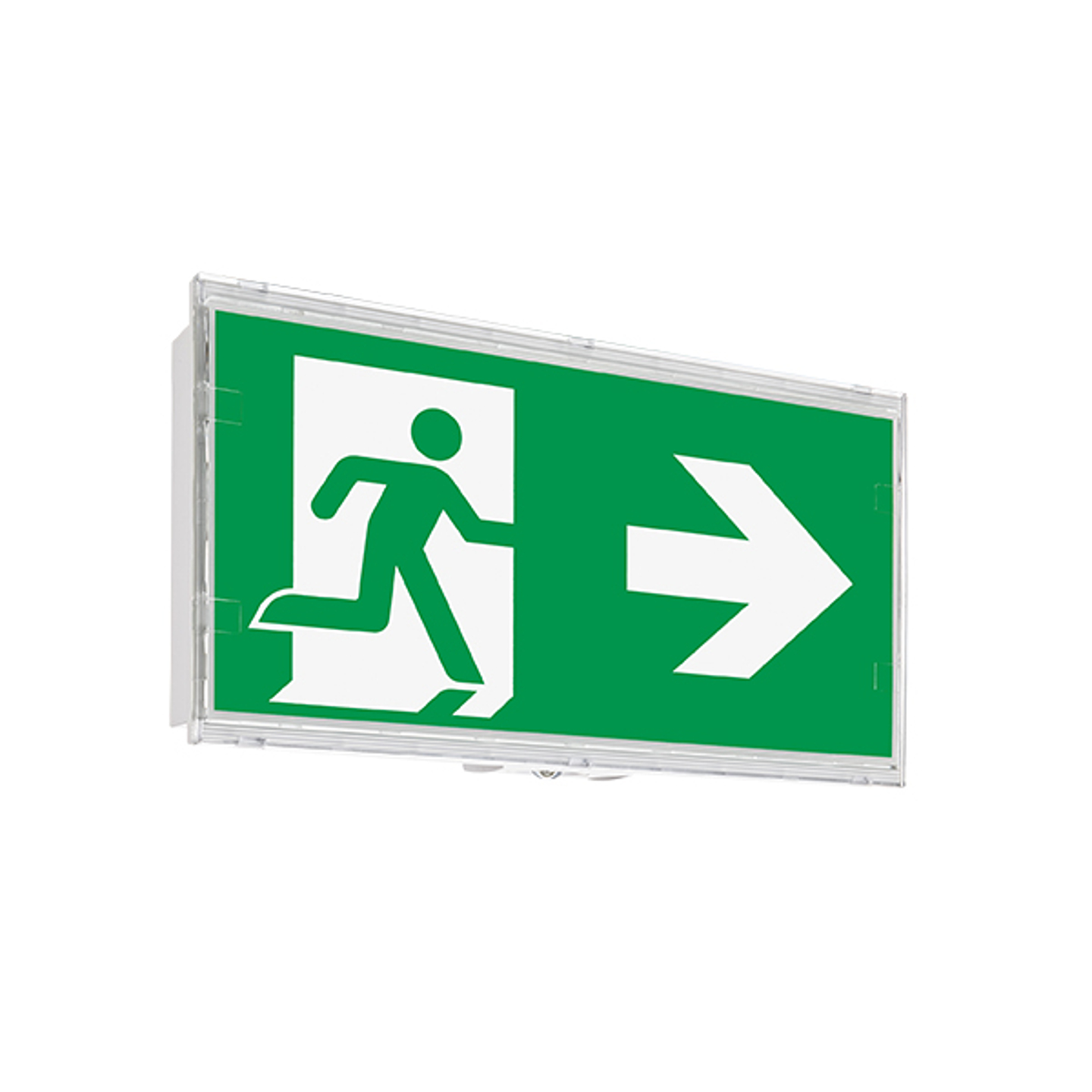

Smart Nice self contained Wall surface mounted Test button 30 m. IP43 incl. picto

Article number PC5D113111
  • Description

    Combined emergency exit and 5lx safety luminaire. The safety luminaire comes with two different optics, which can be easily exchanged thanks to the click system. The robust polycarbonate luminaire has no screws for fast mounting. One special pictogram or one pictogram set (down arrow, left, right) is included. Please make your choice when ordering the fixture. The emergency exit section is equipped with a 1.5W LED bar, the security fixture with a 3W power LED. Although the fixture combines two different types of fixtures, it is counted as one fixture within an electrical circuit. The spot optic for lighting from above is already pre-fitted, the 20 degree optic for lighting to EN 1838 is also included. Applications: offices, stores, schools, restaurants, museums, health care and educational institutions

    Application
    Offices, stores, schools, restaurants, museums, care- and educational institutions

    Type
    Smart Nice

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5
  • Downloads

  • Specifications

    • Merk (origineel) Taurac Premium
    • Article number PC5D113111
    • Kind Bulkhead
    • Mounting method Wall surface mounted
    • Function Escape route signage
    • Suitable for labelling type Insert sheet/plate
    • With pictogram Yes
    • Monitoring equipment Test button
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Plastic, transparent
    • Voltage type AC/DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Rated life time L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP43
    • Impact strength IK04
    • Protection class I
    • Max. system power (W) 4,80
    • Rated luminous flux according to IEC 62722-2-1 (lm) 190
    • Luminous flux in standby mode (lm) 190
    • Power factor 10
    • Recognition distance (m) 30
    • Nominal operation time (h) 1 - 1
    • Width (mm) 313
    • Height/depth (mm) 174
    • Length (mm) 54
    • Type of wiring Suitable for through wiring
    • Connection type Plug-in connection
    • Unit Piece
    • Warranty (months) 60
Article number PC5D113111

Smart Nice self contained Wall surface mounted Test button 30 m. IP43 incl. picto
