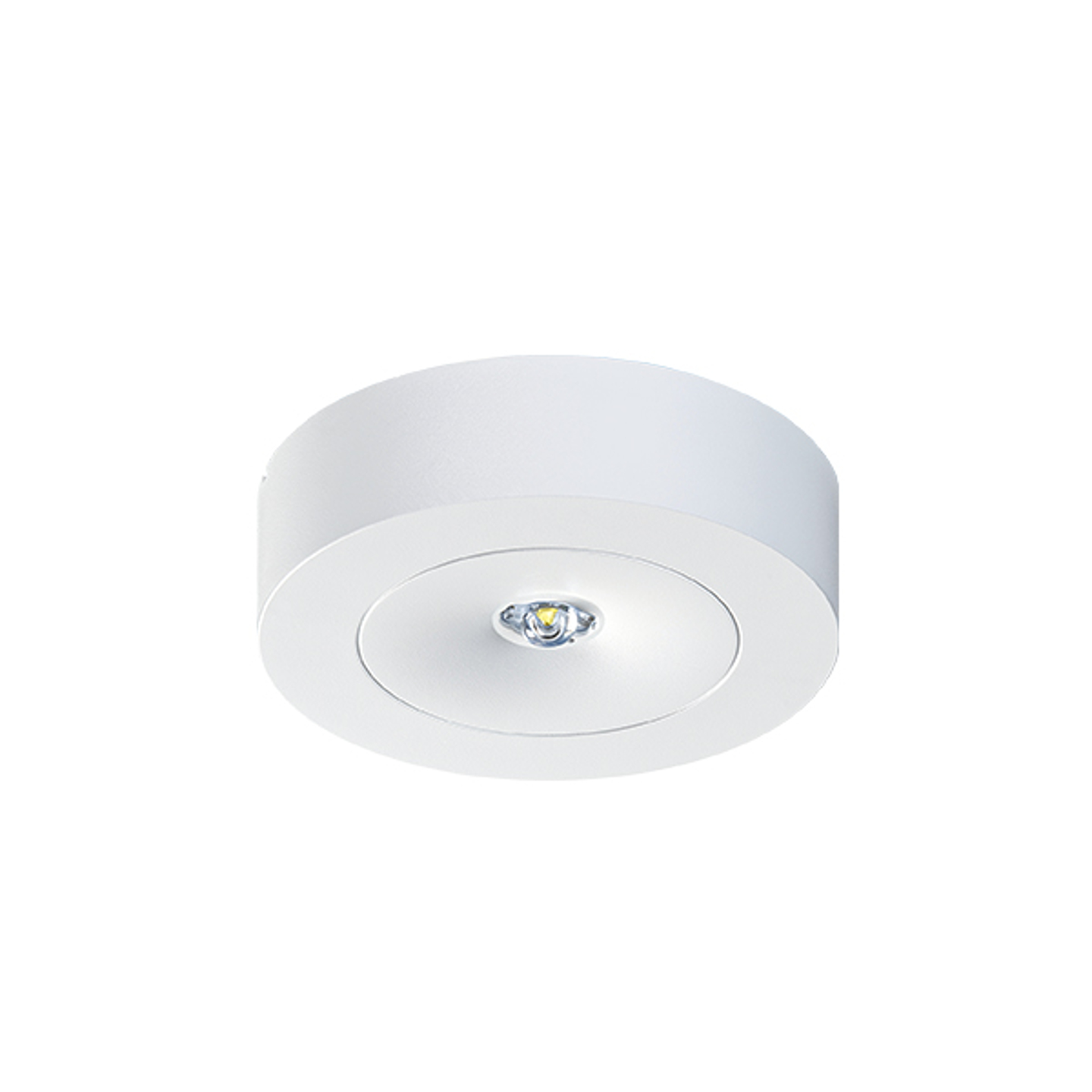

Spot Lyon Central battery system Ceiling surface mounted. Stand. Open area IP40

Article number PO6C291110
zoom_in Zoom

  • Description

    Spot Lyon from the Jersey line emergency lighting series from Taurac is designed for the professional. * A-Quality * Available from stock at our dealer * Specialist advice

    Type
    Lyon

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3

  • Downloads

    descriptionDownload Factsheet

  • Specifications

    • Merk (origineel) Taurac Premium
    • Article number PO6C291110
    • Kind Surface mounted ceiling open area
    • Mounting method Ceiling surface mounting
    • Function Escape route lighting
    • Monitoring equipment None
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Central (central battery)
    • Battery quality Lead
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Plastic, transparent
    • Voltage type DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Rated life time L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP40
    • Impact strength IK04
    • Protection class I
    • Max. system power (W) 3,50
    • Rated luminous flux according to IEC 62722-2-1 (lm) 240
    • Power factor 6
    • Height/depth (mm) 38
    • Outer diameter (mm) 131
    • Type of wiring Suitable for through wiring
    • Connection type Plug-in connection
    • Attribute Central battery system, Standard, Standard
    • Unit Piece
    • Warranty (months) 60
Article number PO6C291110

Spot Lyon Central battery system Ceiling surface mounted. Stand. Open area IP40
