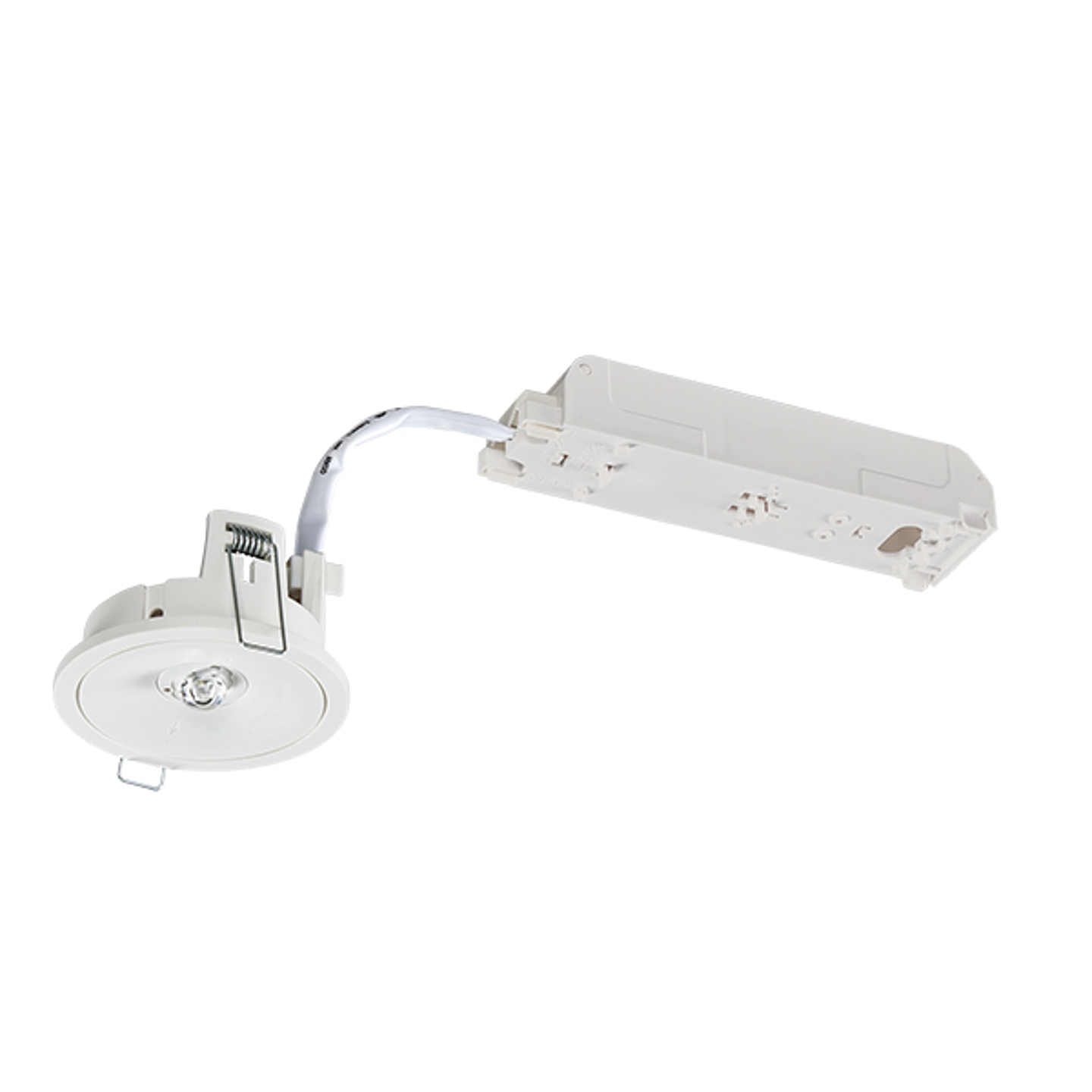

Spot Milan Self contained Ceiling recessed mounted. Automatic self test Open area IP40

Article number PI5D311112
  • Description

    Spot Milan from the Jersey line emergency lighting series from Taurac is designed for the professional. * A-Quality * Available from stock at our dealer * Specialist advice

    Type
    Milan

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5
  • Downloads

  • Specifications

    • Merk (origineel) Taurac Premium
    • Article number PI5D311112
    • Kind Recessed outline 80 open area
    • Mounting method Built-in
    • Function Escape route lighting
    • Monitoring equipment Automatic self test
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Plastic, transparent
    • Voltage type AC/DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Rated life time L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP40
    • Impact strength IK04
    • Protection class II
    • Max. system power (W) 2,40
    • Rated luminous flux according to IEC 62722-2-1 (lm) 50
    • Luminous flux in standby mode (lm) 240
    • Power factor 5
    • Nominal operation time (h) 1 - 1
    • Built-in height/depth (mm) 47
    • Built-in diameter (mm) 80
    • Type of wiring Suitable for through wiring
    • Connection type Plug-in connection
    • Attribute Self contained, Auto test, Standard
    • Unit Piece
    • Warranty (months) 60
Article number PI5D311112

Spot Milan Self contained Ceiling recessed mounted. Automatic self test Open area IP40
