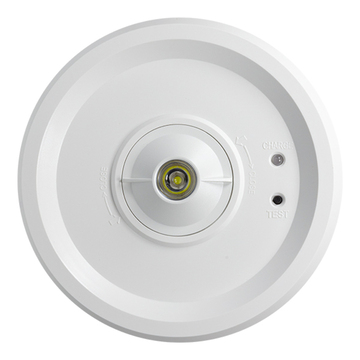

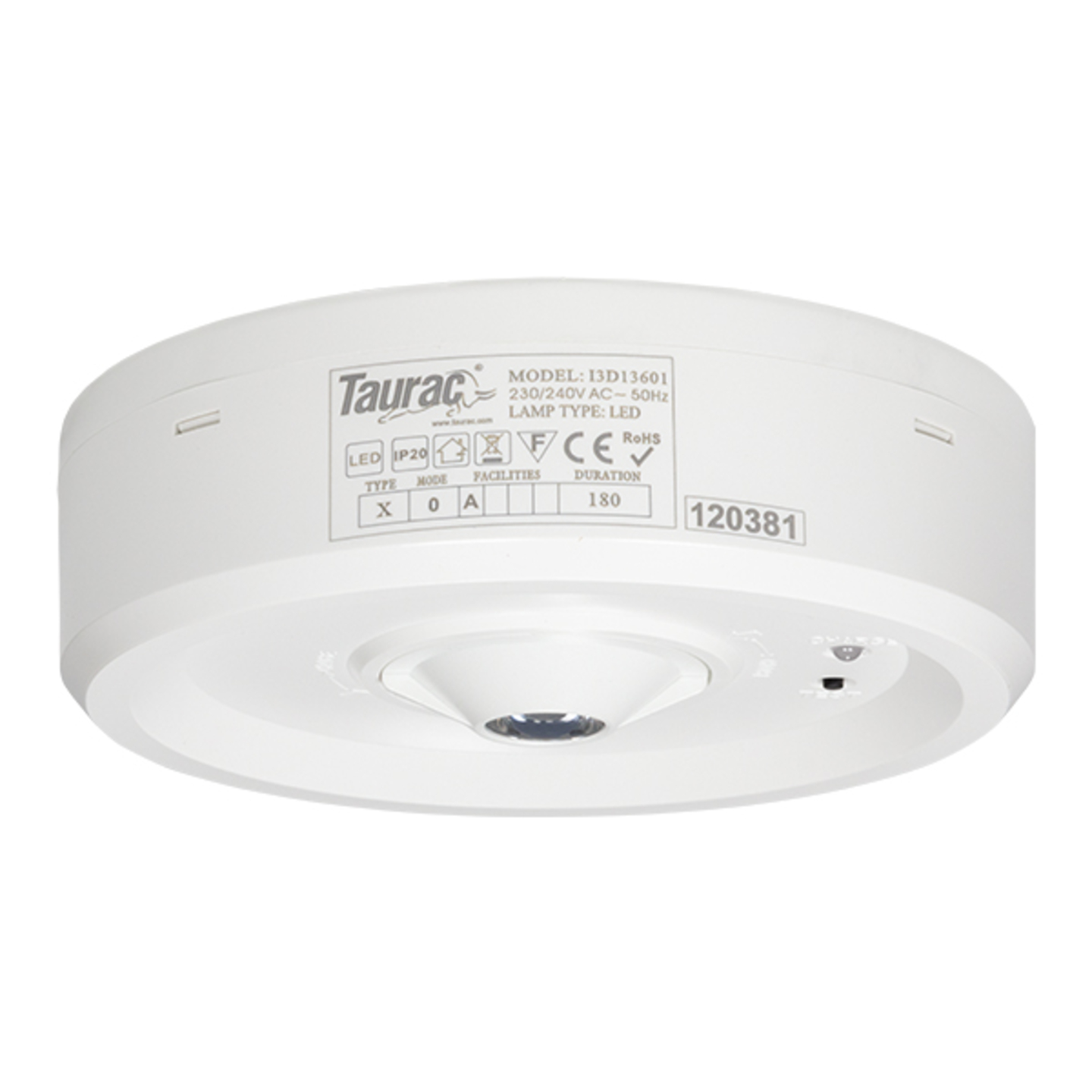

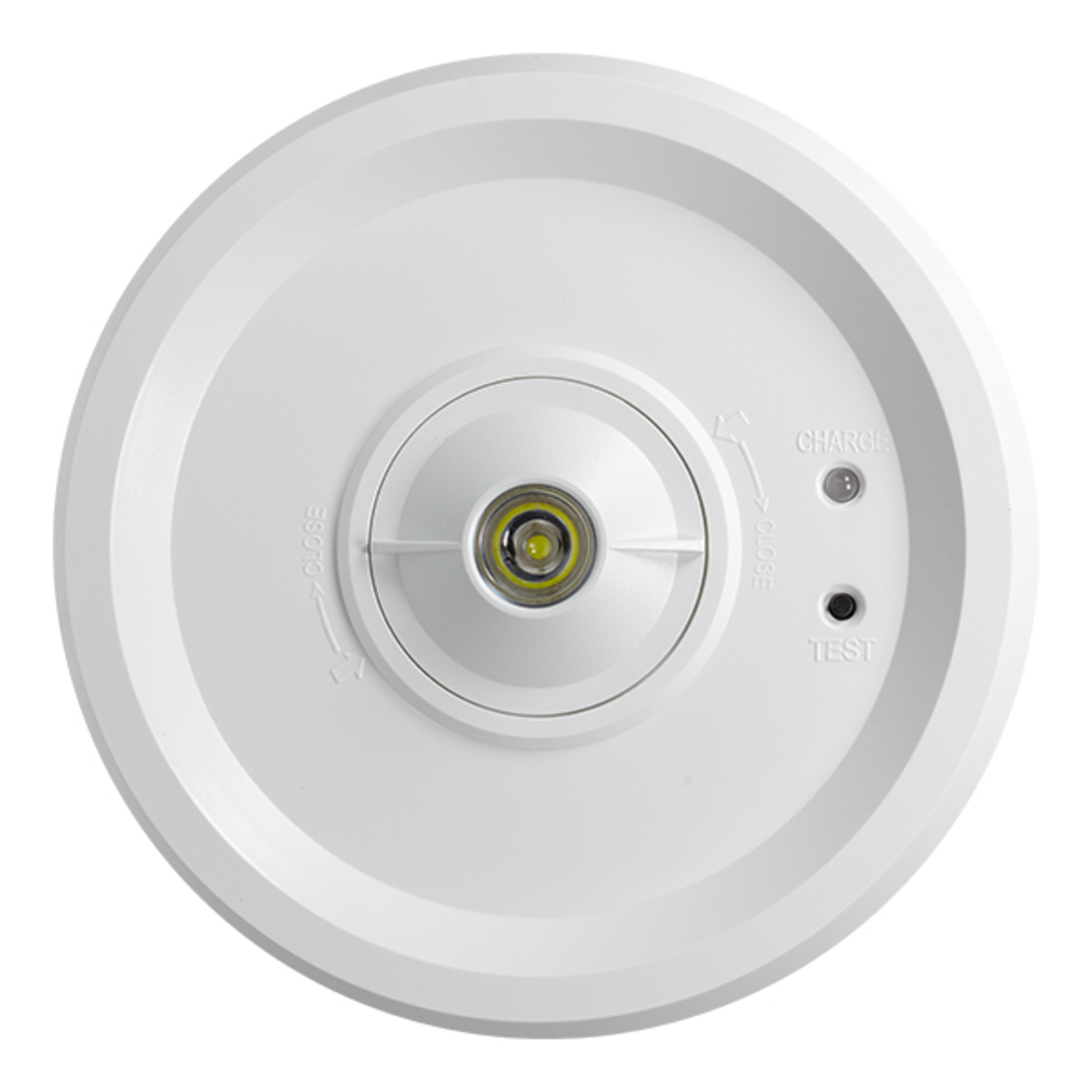

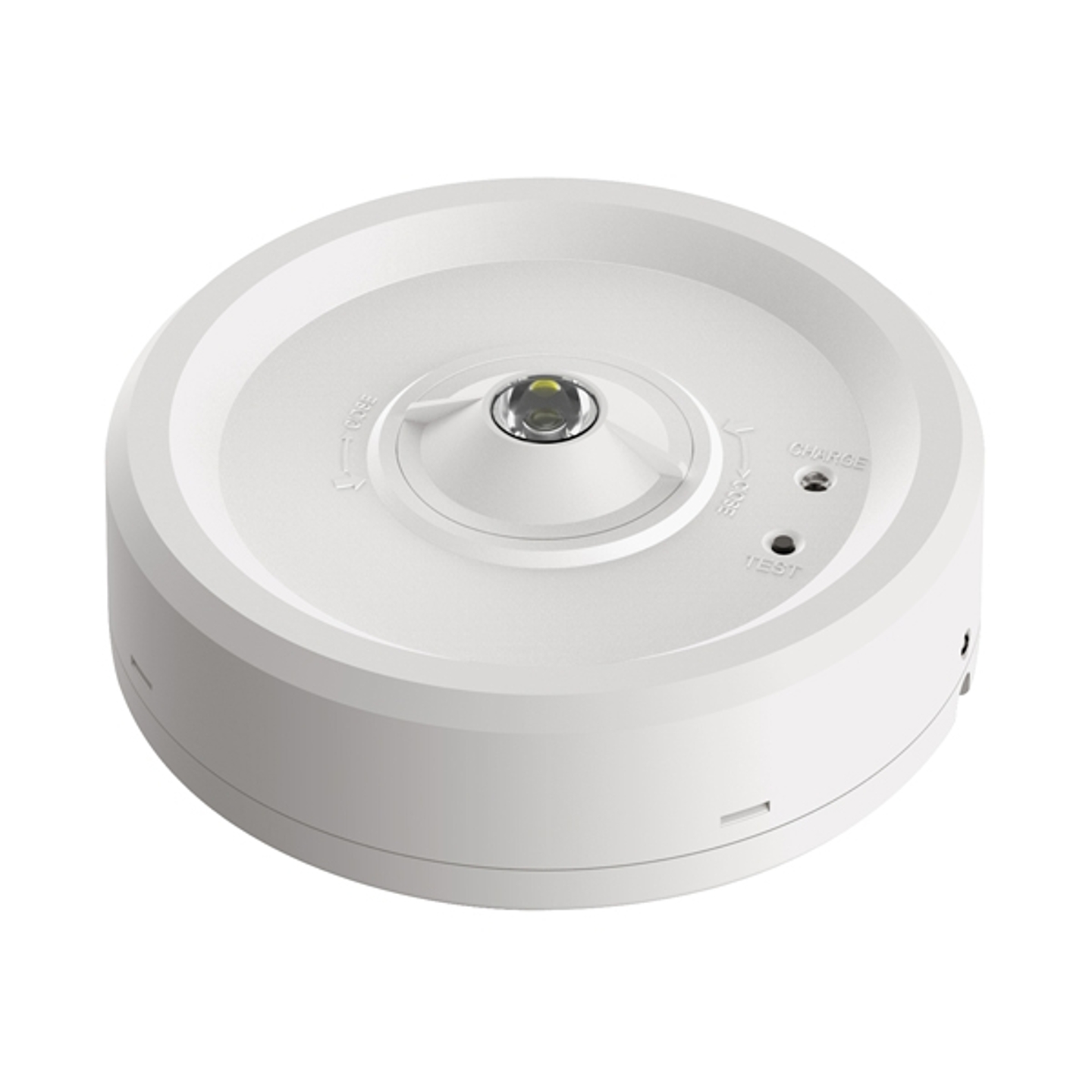

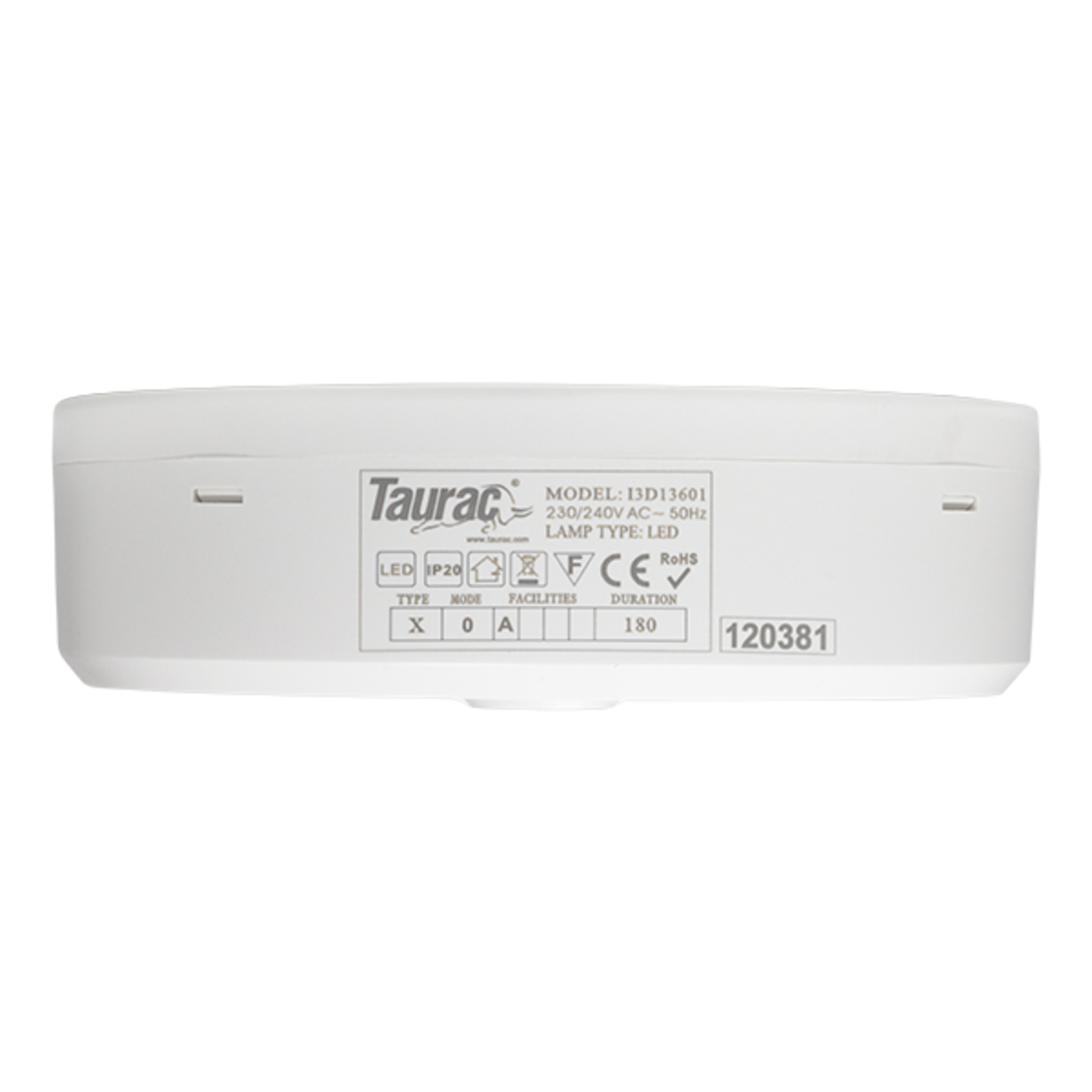

Spot New York self contained Ceiling surface mounted IP20 3W self test

Article number I3D13601
zoom_in Zoom

  • Description

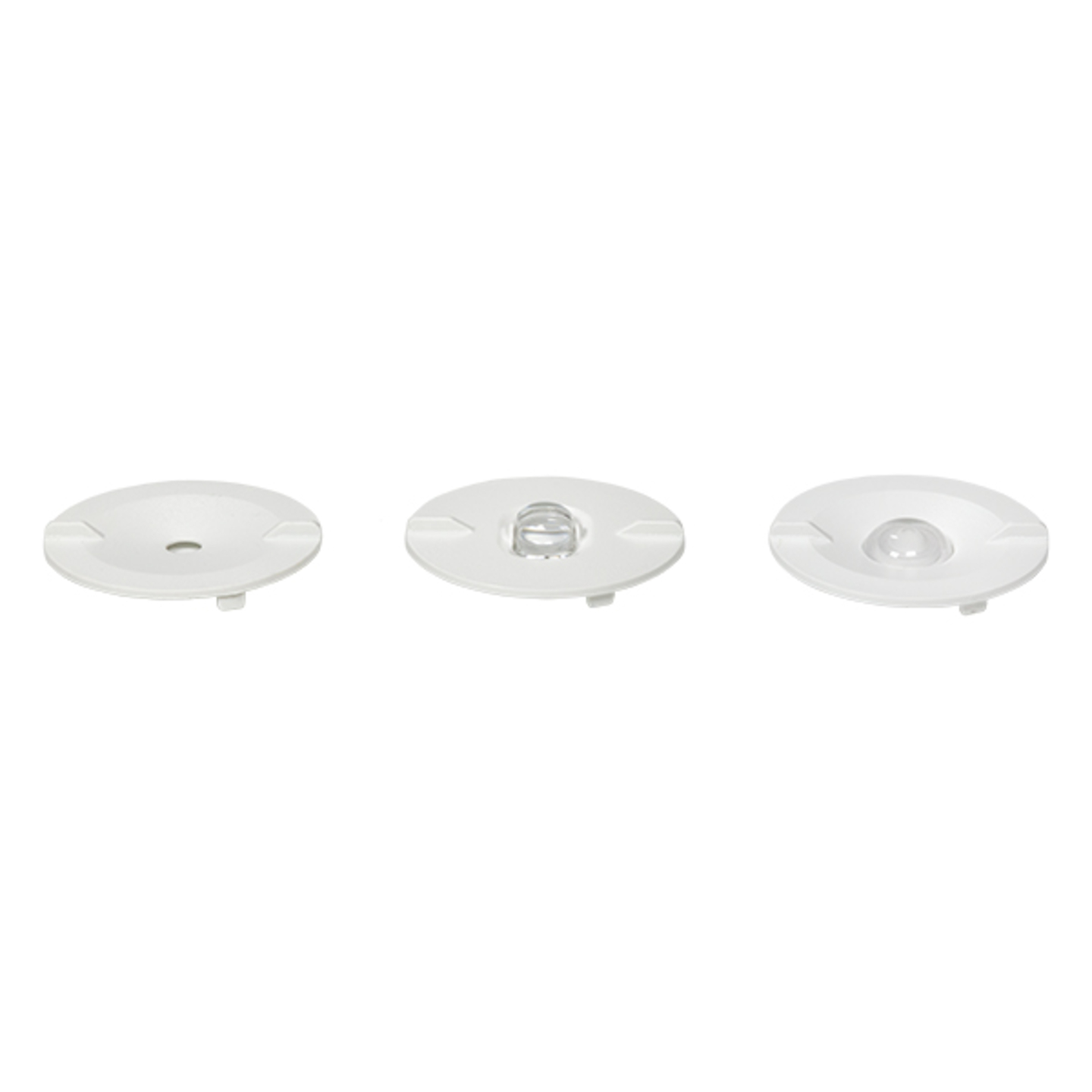

    Is te gebruiken als opbouwarmatuur voor vluchtwegverlichting, alleen te gebruiken in nood. Wordt geleverd inclusief verschillende lenzen voor open ruimtes en gangen.

    Application
    Offices, stores, schools, restaurants, museums, care- and educational institutions

    Type
    Spot New York

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4

  • Downloads

    descriptionDownload Handleiding descriptionDownload Factsheet

  • Specifications

    • Merk (origineel) Taurac Plus
    • Article number I3D13601
    • Kind Spot
    • Mounting method Ceiling surface mounting
    • Function Escape route lighting
    • Monitoring equipment Automatic self test
    • Wiring system Standby switching
    • Power supply system Peripheral (individual battery)
    • Battery quality NiCd
    • Lamp type LED not exchangeable
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Without cover
    • Voltage type DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor Focal lens
    • Energy efficiency class of the light source according to EU regulation 2019/2015 Not required
    • Degree of protection (IP) IP20
    • Impact strength IK02
    • Protection class I
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Max. system power (W) 3

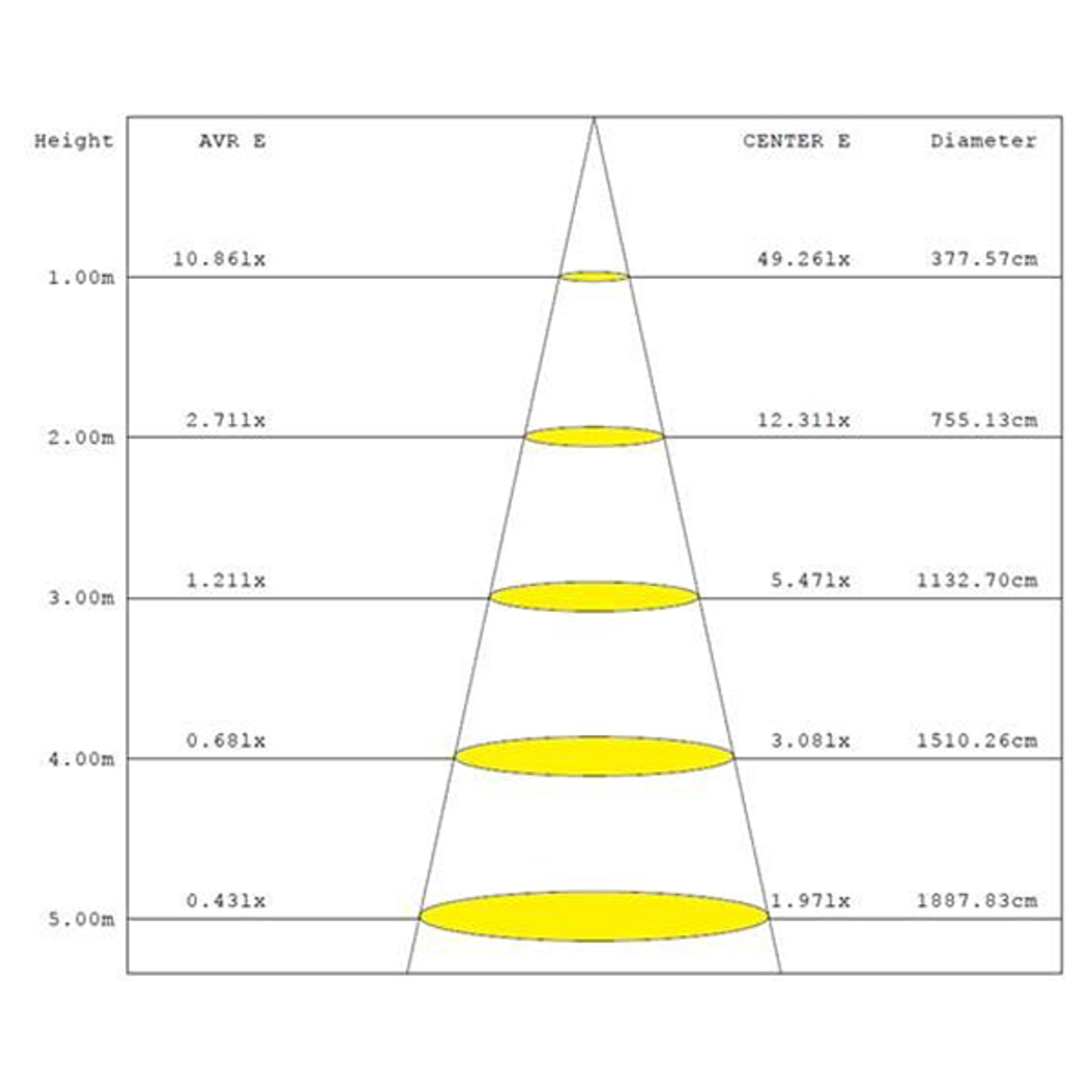

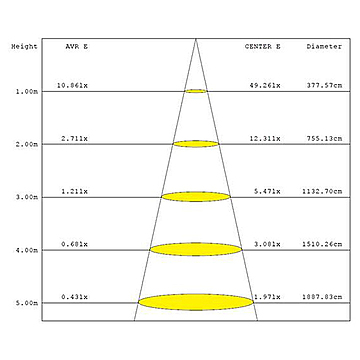

    • Luminous flux in standby mode (lm) 160
    • Colour temperature (K) 6000 - 6000
    • Power factor 0,30
    • Height/depth (mm) 44
    • Outer diameter (mm) 150
    • Type of wiring Ending
    • Number of poles 3
    • Conductor cross section (mm²) 0,50
    • Connection type Plug-in connection
    • Rechargeable Yes
    • Unit Piece
    • Warranty (months) 36
