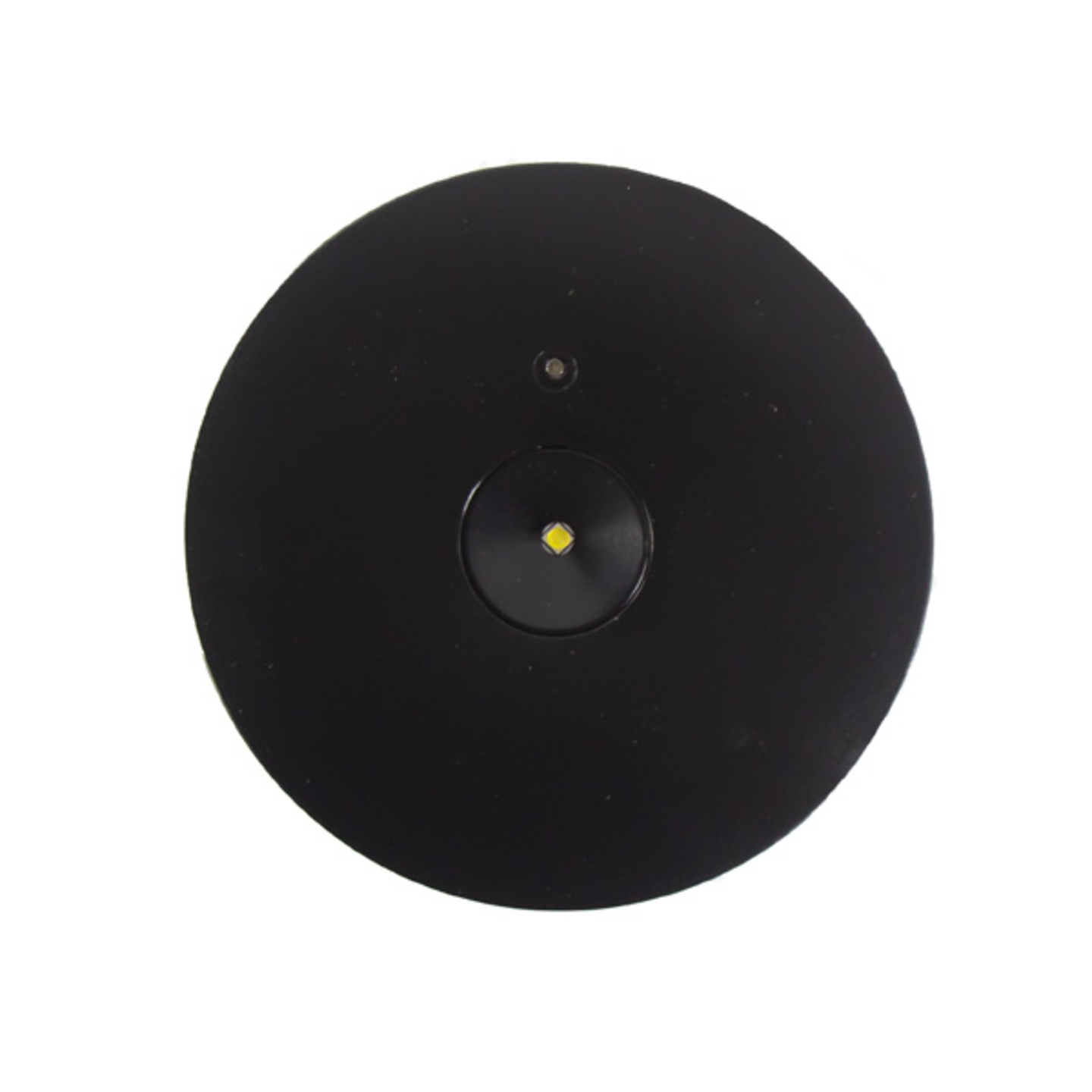

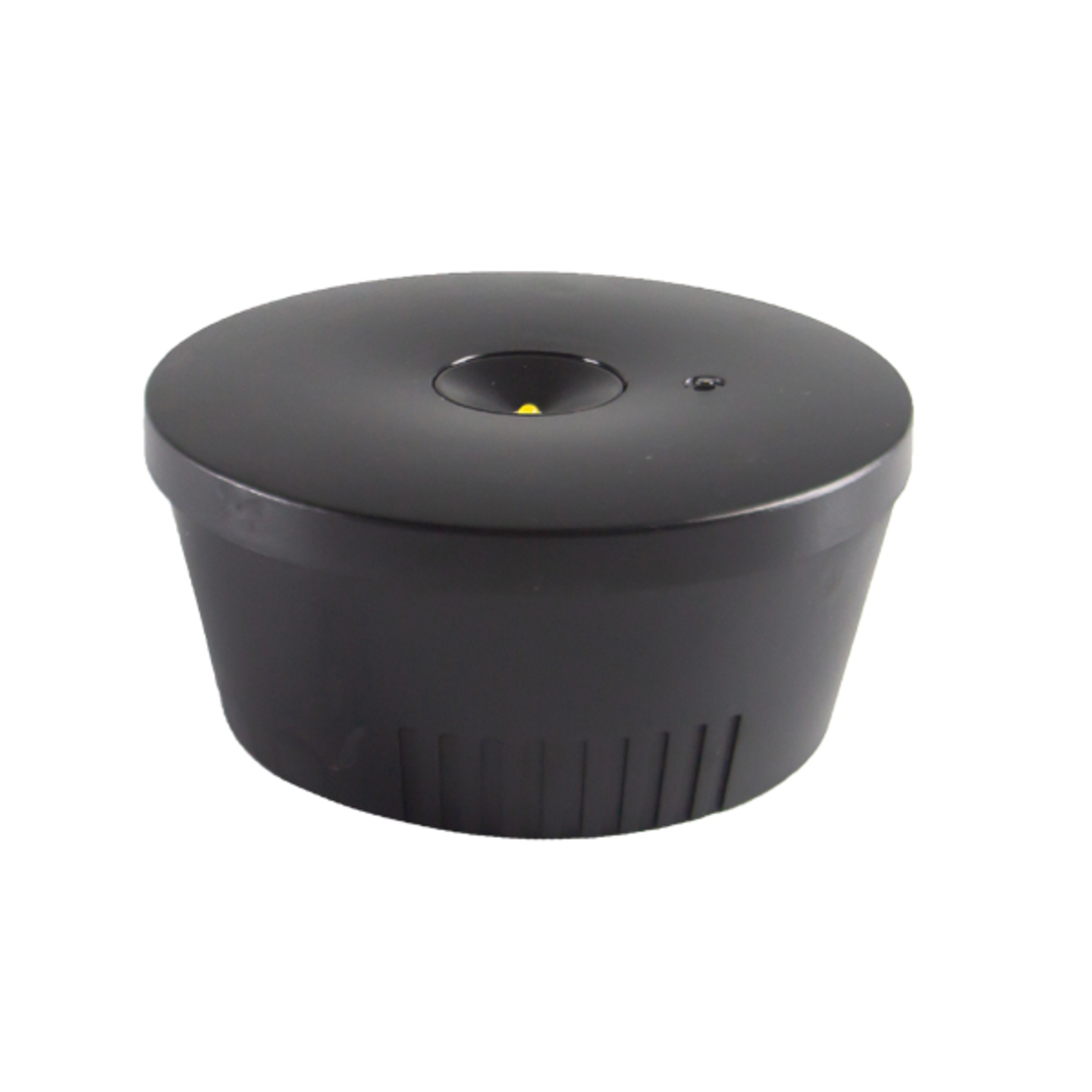

Taurac Spot Seoul Self contained Ceiling recessed / surface mounted IP20 3W Test button, black

Article number I1D13601-B
zoom_in Zoom

  • Description

    Black version of the Spot Seoul. Can be used as surface mounted and recessed escape route lighting. Comes with 2 lenses. Suitable for all IP20 places, where there is no water and also hardly any dust present. only to be used in emergency. Also available in a version with a plexiglass plate I1D14601-B, making it also usable as escape route signaling.

    Type
    Spot Seoul

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4

  • Downloads

    descriptionDownload Factsheet descriptionDownload Handleiding

  • Specifications

    • Merk (origineel) Taurac Basic
    • Article number I1D13601-B
    • Kind Spot
    • Mounting method Surface mounting/recessed mounting
    • Function Escape route lighting
    • Monitoring equipment Test button
    • Wiring system Standby switching
    • Power supply system Peripheral (individual battery)
    • Battery quality NiCd
    • Lamp type LED not exchangeable
    • Lamp holder None
    • Housing material Plastic
    • Housing colour Black
    • Material cover Without cover
    • Voltage type DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor Focal lens
    • Energy efficiency class of the light source according to EU regulation 2019/2015 Not required
    • Degree of protection (IP) IP20
    • Impact strength IK02
    • Protection class II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Max. system power (W) 3
    • Luminous flux in standby mode (lm) 140
    • Colour temperature (K) 6000 - 6000
    • Power factor 0,54
    • Height/depth (mm) 57,50
    • Outer diameter (mm) 124
    • Built-in height/depth (mm) 47,50
    • Built-in diameter (mm) 105
    • Type of wiring Ending
    • Number of poles 2
    • Conductor cross section (mm²) 0,50
    • Connection type Plug-in connection
    • Rechargeable Yes
    • Unit Piece
    • Warranty (months) 36
