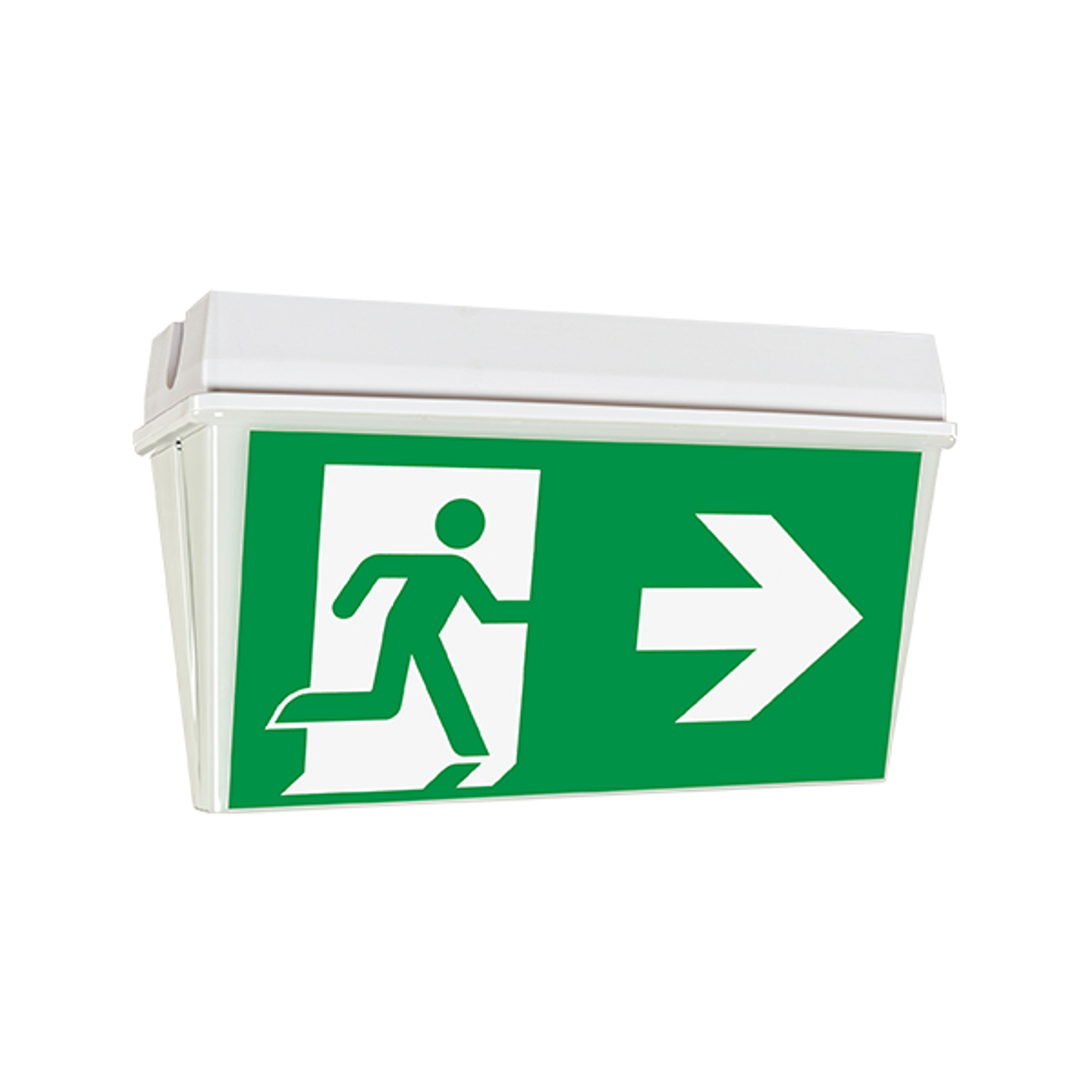

Bulk Bern Self contained Ceiling / wall surface mounted Automatic self test 32 m. IP65 Incl. Picto

Article number PV5D513112
  • Description

    Powerhouse from the Taurac Premium range. IK10 impact resistance and IP65 protection. With also a nominal lifetime of 100.00 hours and a 5 year warranty, this Bulkhead is ideal for both indoor and outdoor locations. IFS certified. The optional built-in battery heating feature enables the battery to deliver optimum results for longer. Applications: Suitable for waterproof applications such as swimming pools, food processing plants, sports complexes and other locations that have to deal with extreme conditions.

    Application
    Swimming pools, food processing companies, sports centres en other locations subject to extreme conditions

    Type
    Bulk Bern

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5 keurmerk_6 keurmerk_7 keurmerk_8
  • Downloads

  • Specifications

    • Merk (origineel) Taurac Premium
    • Article number PV5D513112
    • Kind Bulkhead
    • Mounting method Wall surface mounting/ceiling surface mounting
    • Function Escape route signage
    • Suitable for labelling type Sticker
    • Type of indicator Single/double-sided
    • With pictogram Yes
    • Monitoring equipment Automatic self test
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Plastic, opal
    • Voltage type AC/DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Rated life time L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP65
    • Impact strength IK10
    • Protection class II
    • Max. system power (W) 3
    • Rated luminous flux according to IEC 62722-2-1 (lm) 190
    • Power factor 5
    • Recognition distance (m) 32
    • Nominal operation time (h) 1 - 1
    • Width (mm) 370
    • Height/depth (mm) 217
    • Length (mm) 140
    • Type of wiring Suitable for through wiring
    • Connection type Plug-in connection
    • Unit Piece
    • Warranty (months) 60
