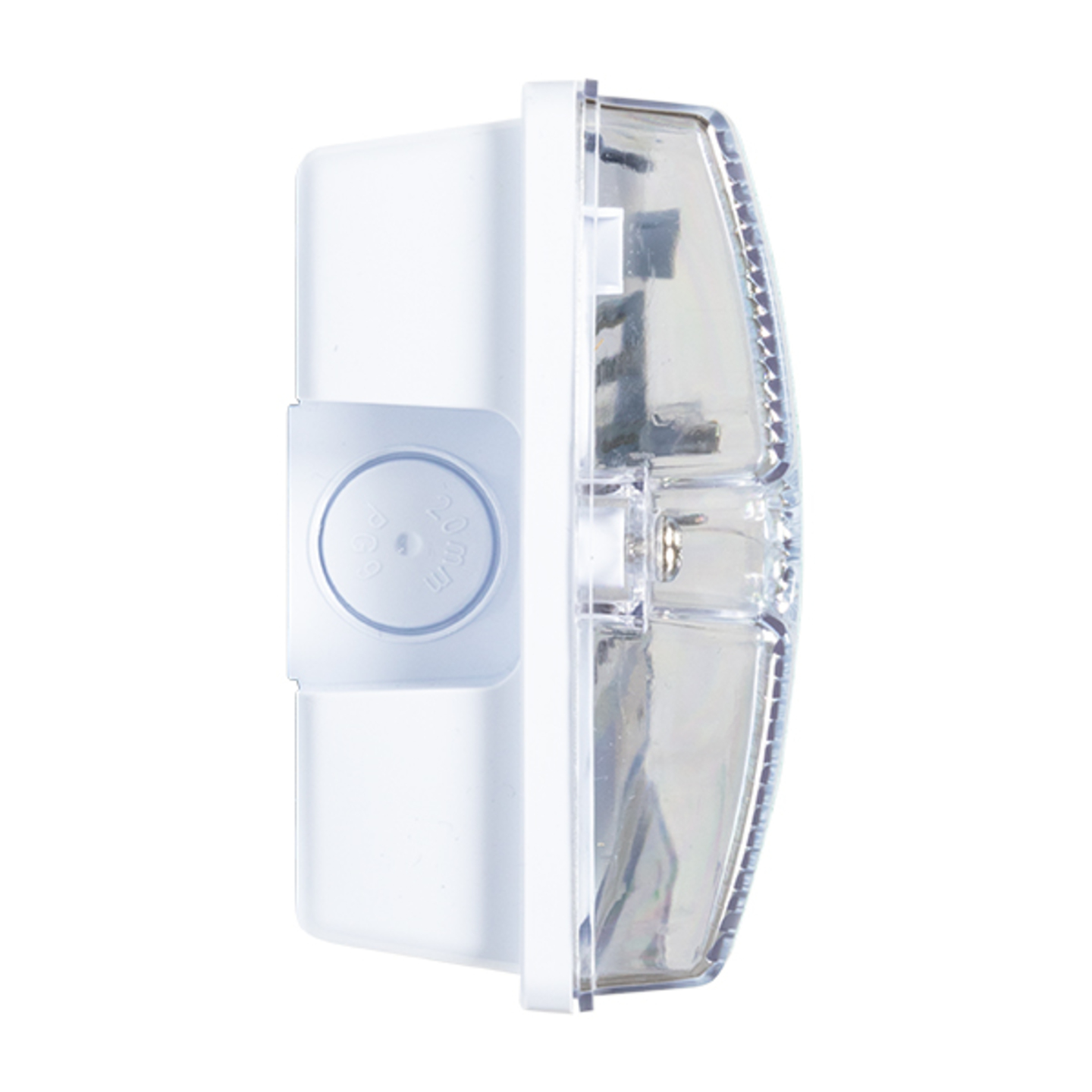

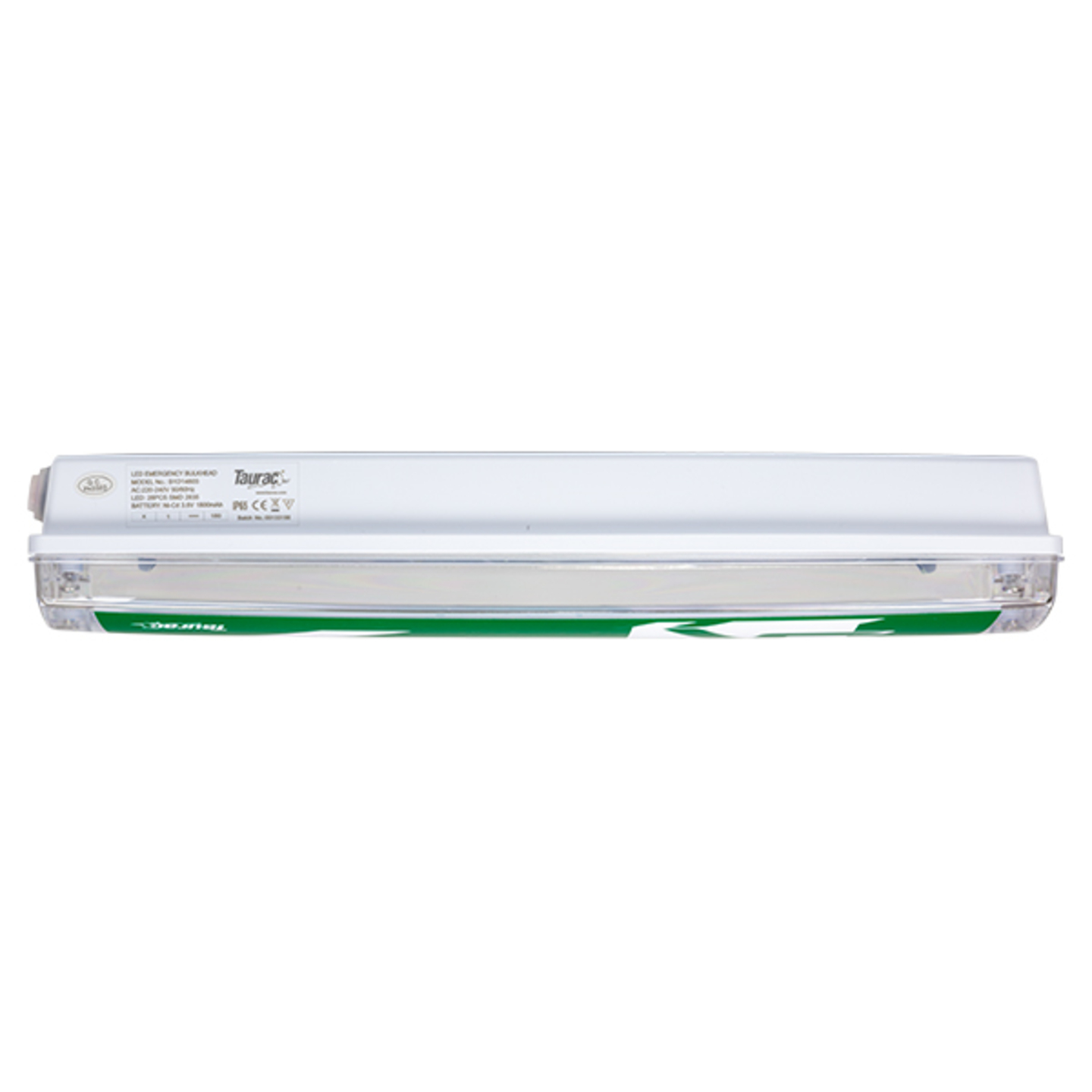

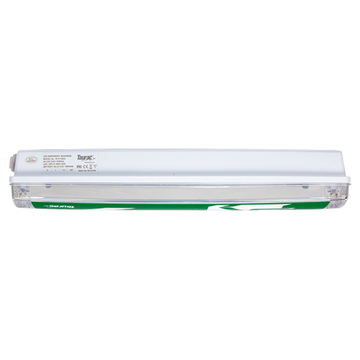

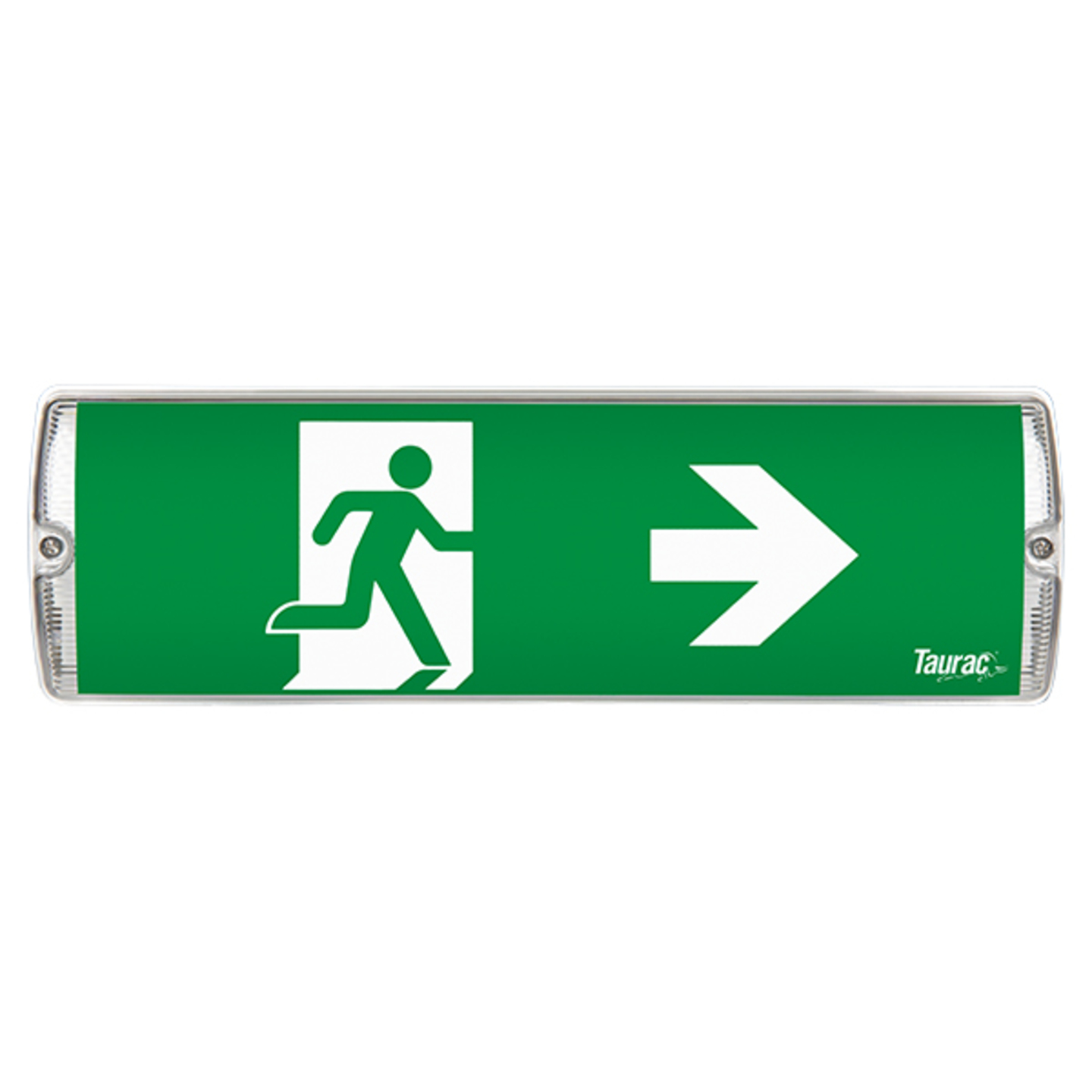

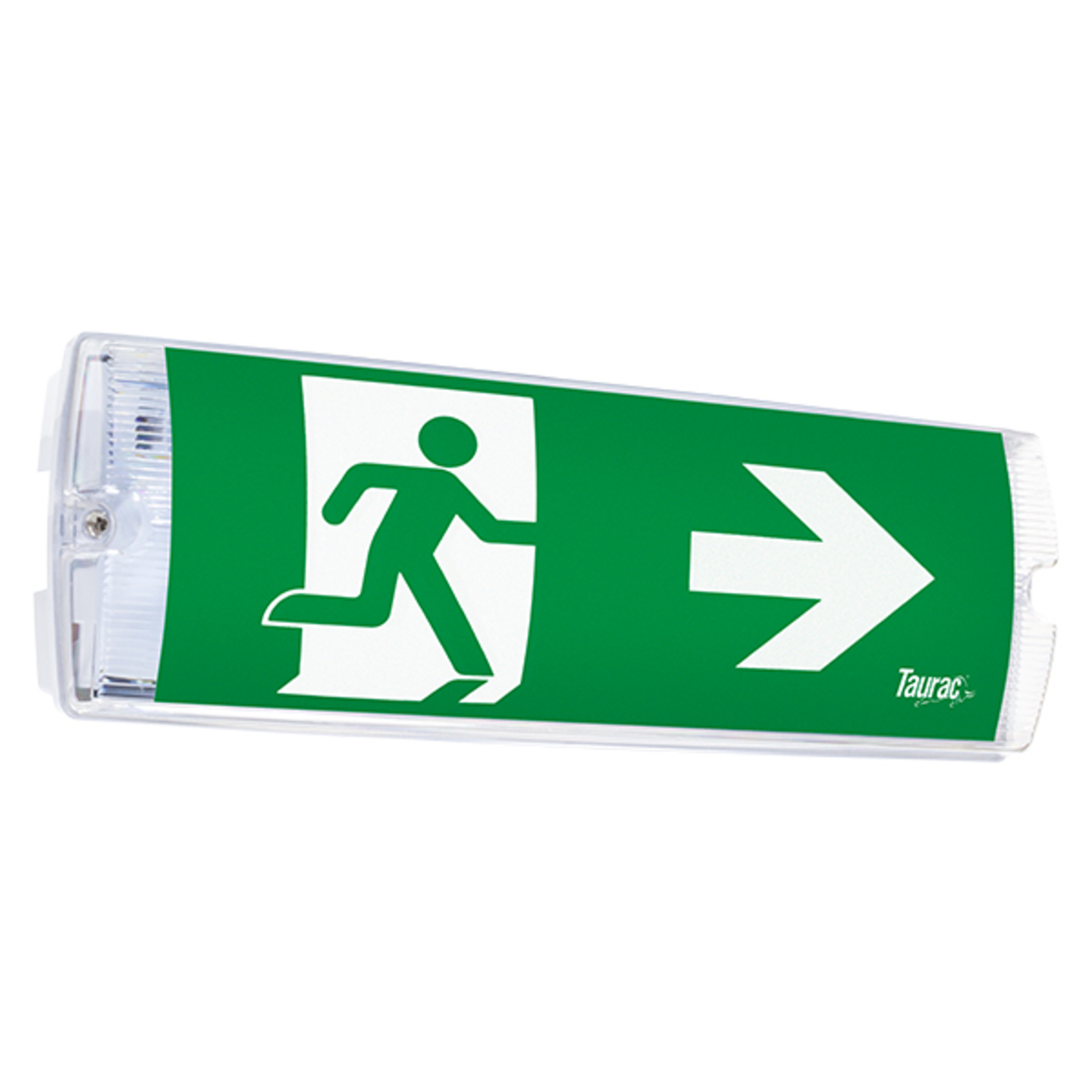

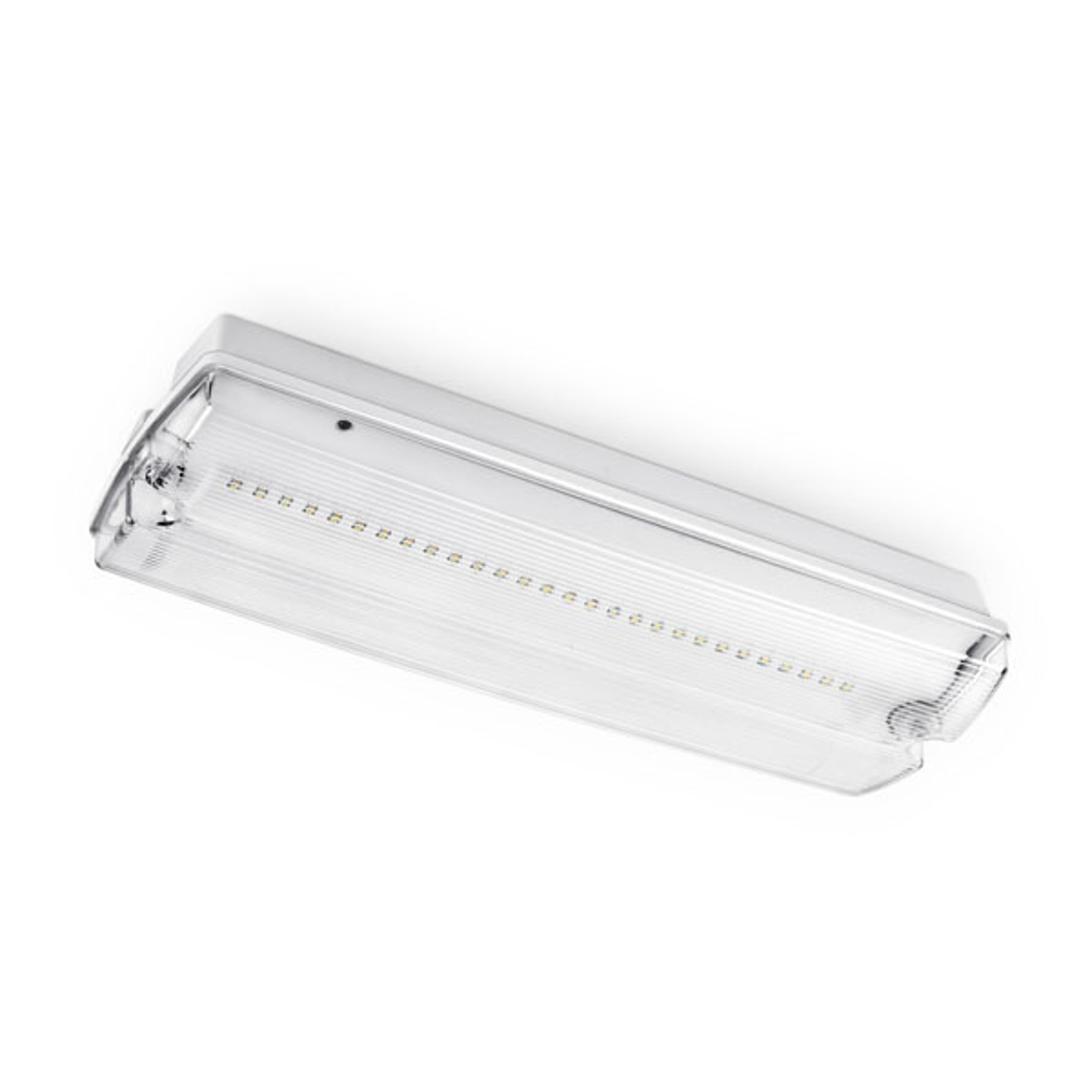

Bulk Melbourne Self contained Wall / ceiling surface mounted IP65 4W Test button Transparent cover

Article number B1D14603
zoom_in Zoom

  • Description

    One of the most best sold fixtures from the Taurac Basic line. With a nominal lifespan of 50,000 burning hours, this is a real winner. The automatic self-diagnosis ensures greater ease of use. Suitable for both wall and ceiling mounting.

    Application
    Offices, stores, schools, restaurants, museums, care and educational institutions

    Type
    Bulk Melbourne

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5

  • Downloads

    descriptionDownload Spacingtabellen descriptionDownload Handleiding descriptionDownload Handleiding Testprocedures

  • Specifications

    • Brand Taurac Basic
    • Article number B1D14603
    • Kind Bulkhead
    • Mounting method Surface mounting/recessed mounting
    • Function Escape route lighting/signage
    • Suitable for labelling type Sticker
    • Type of indicator Single-sided
    • With pictogram Yes
    • Monitoring equipment Test button
    • Wiring system Continuous circuit/emergency circuit
    • Power supply system Peripheral (individual battery)
    • Battery quality Lithium-ions
    • Lamp type LED not exchangeable
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Plastic, transparent
    • Voltage type AC/DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Energy efficiency class of the light source according to EU regulation 2019/2015 Not required
    • Rated life time L70/B50 at 25 °C (h) 50000
    • Degree of protection (IP) IP65
    • Impact strength IK07
    • Protection class II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Max. system power (W) 4
    • Rated luminous flux according to IEC 62722-2-1 (lm) 180
    • Luminous flux in standby mode (lm) 160
    • Colour temperature (K) 6000 - 6000
    • Power factor 0,80
    • Recognition distance (m) 20
    • Nominal operation time (h) 50000 - 50000
    • Width (mm) 110
    • Height/depth (mm) 60
    • Length (mm) 345
    • Built-in height/depth (mm) 30
    • Type of wiring Ending
    • Number of poles 3
    • Conductor cross section (mm²) 0,50
    • Connection type Plug-in connection
    • Rechargeable Yes
    • Unit Piece
    • Minimum order quantity 1
    • Order multiple 1
    • Warranty (months) 36
