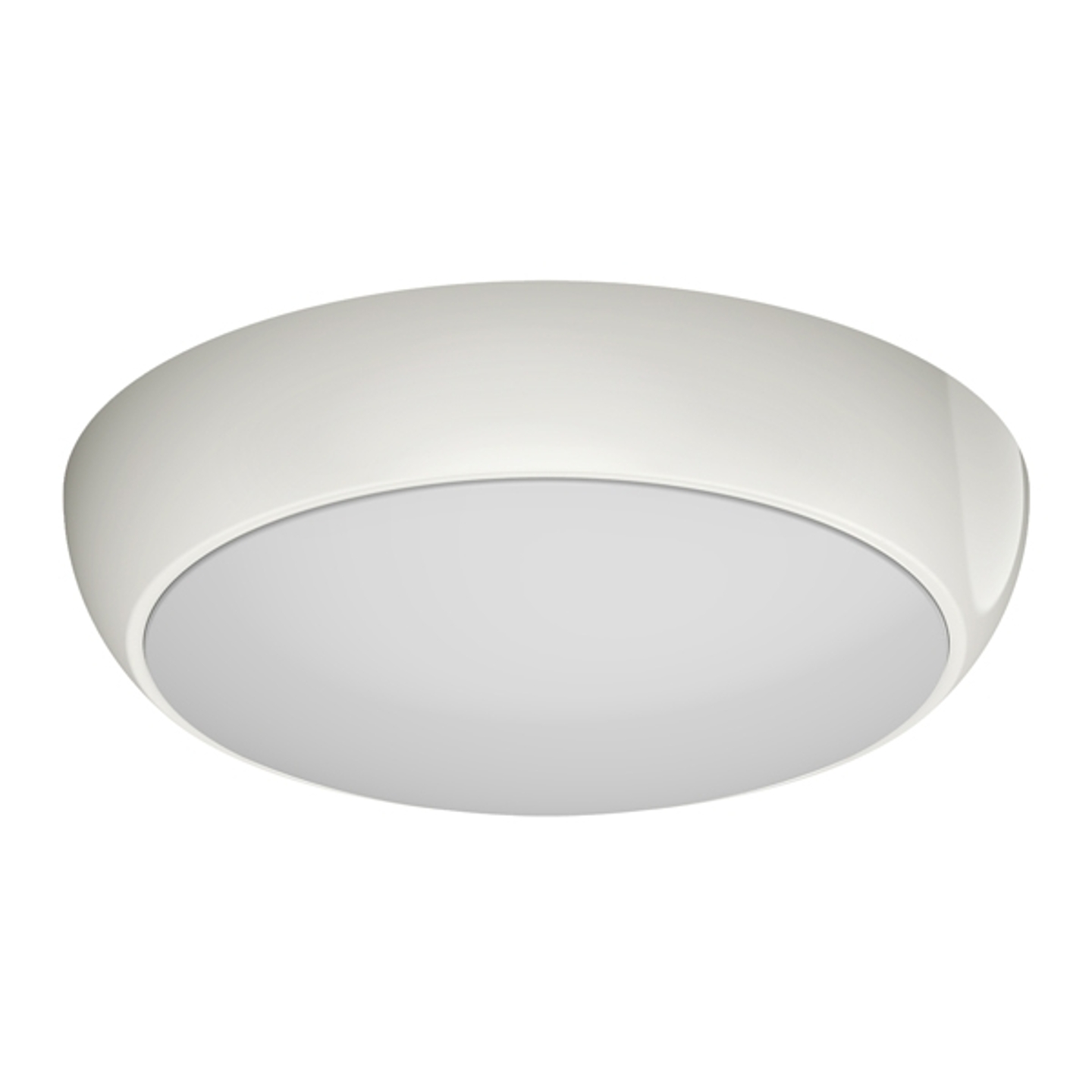

Port Chicago Ceiling / wall surface mounted IP65 11W 6000K

Article number G3D10601
zoom_in Zoom

  • Description

    Gallery luminaire for general lighting with opal shade, 6000 Kelvin, to be used in humid areas because of its IP65 value. Due to its size very easy to mount. If you want to alternate it with lighting with an emergency function, you need the G3D14601.

    Application
    Gallery flats, offices, reception areas, shops, supermarkets, presentation areas and musea

    Type
    Port Chicago

  • Downloads

    descriptionDownload Factsheet descriptionDownload Handleiding

  • Specifications

    • Merk (origineel) Taurac LED Verlichting
    • Article number G3D10601
    • Kind Gallery Lighting
    • Suitable for wall mounting Yes
    • Suitable for ceiling mounting Yes
    • Suitable for surface mounting Yes
    • Lamp type LED not exchangeable
    • With light source Yes
    • Suitable for number of light sources 1
    • Lamp holder Other
    • Housing material Plastic
    • Surface protection housing Plastic-coated
    • Housing colour White
    • Material cover Plastic, opal
    • Type of grid None
    • Voltage type AC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • With control gear Yes
    • Dimming potentiometer (integrated) Yes
    • Dimming mains voltage modulation Yes
    • No dim function Yes
    • Light distributor Diffuser lens/optic/panel
    • Light sharing Symmetric
    • Beam angle Open beam/diffuse
    • Colour consistency (McAdam ellipse) SDCM5
    • Light outlet Indirect
    • Energy efficiency class of the light source according to EU regulation 2019/2015 F
    • Rated life time L70/B50 at 25 °C (h) 75000
    • Energy Efficiency Index (EEI) 0,10
    • Degree of protection (IP) IP65
    • Degree of protection (NEMA) 1
    • Impact strength IK07
    • Protection class I
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Filament test according to IEC 60695-2-11 None
    • Max. system power (W) 11,50
    • Luminaire efficacy (lm/W) 96
    • Rated luminous flux according to IEC 62722-2-1 (lm) 1100
    • Colour of light White
    • Colour temperature (K) 6000 - 6000
    • Colour rendering index CRI 80-89
    • Power factor 0,90
    • Height/depth (mm) 110
    • Outer diameter (mm) 343
    • Type of wiring Ending
    • Number of poles 3
    • Conductor cross section (mm²) 0,50
    • Connection type Push-in clamp
    • Photobiological safety according to EN 62471 RG2
    • Unified Glare Ratio (UGR) 19
    • Rechargeable No
    • Unit Piece
    • Original number G3D14601
    • Warranty (months) 36
