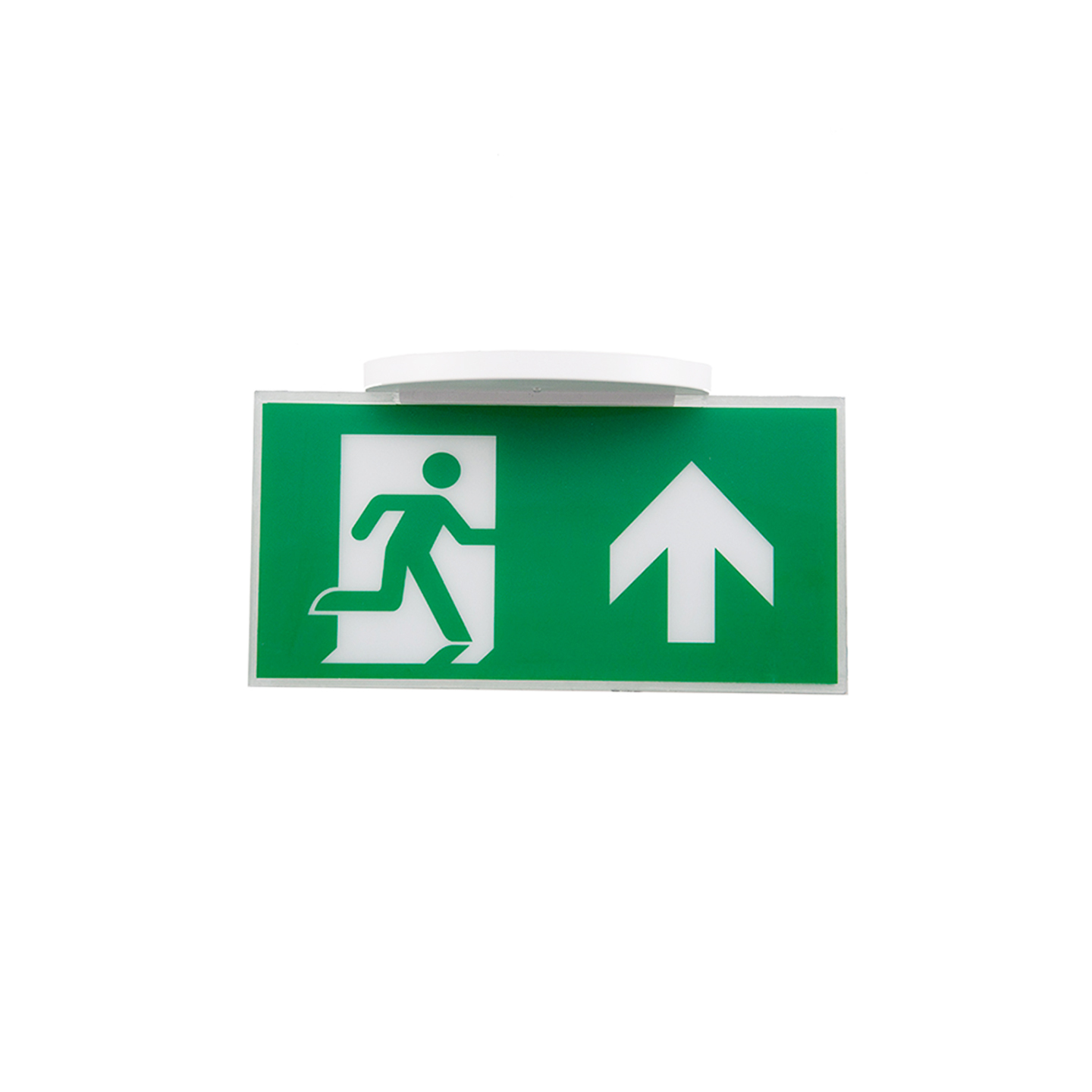

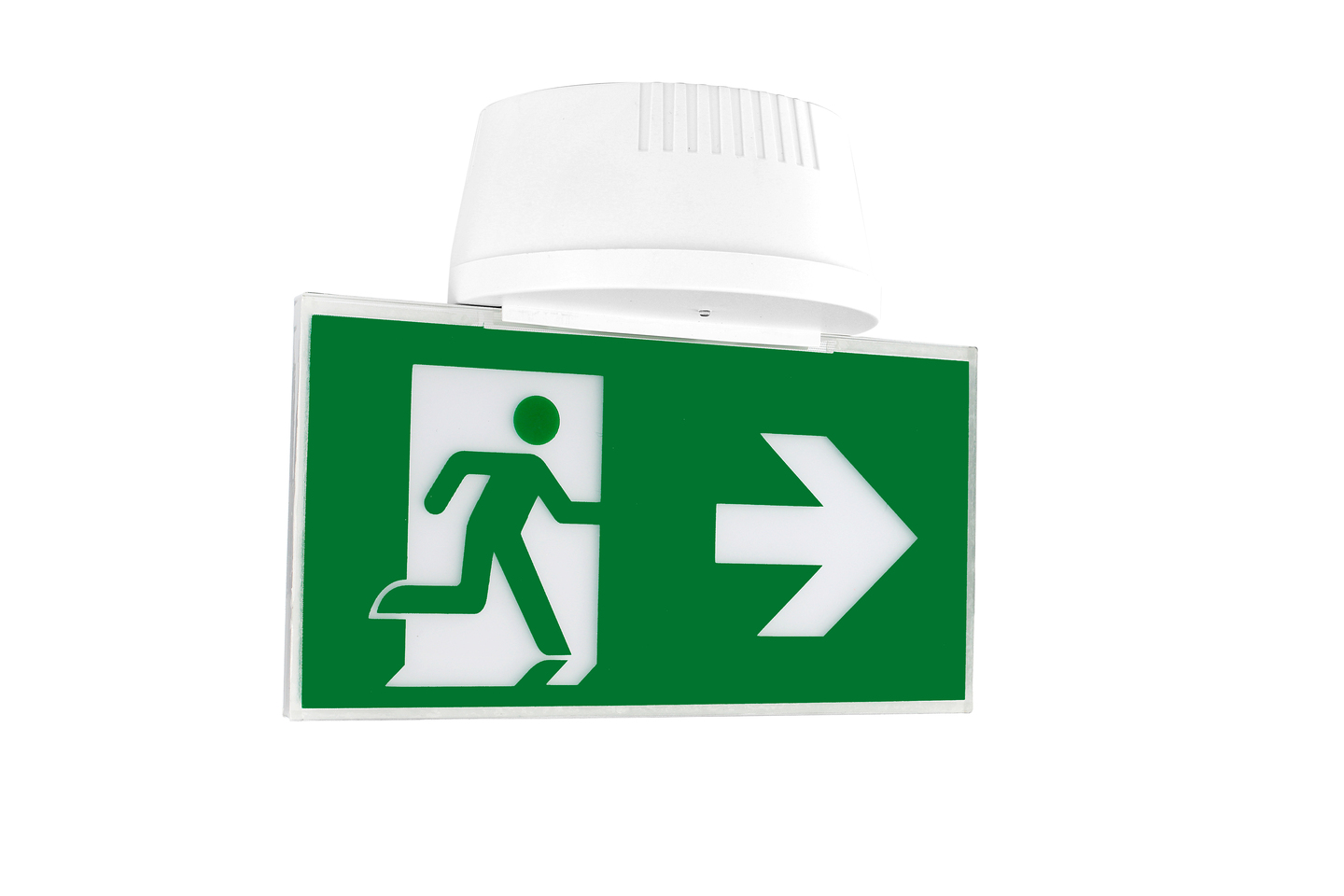

Spot Seoul recessed / surface mounted, IP20, 3W, test button, excl. plexi plate

Article number I1D14601

Zoom

Description

Spot Seoul luminaire from the Jersey line emergency lighting series from Taurac is designed for the professional: the right match for your application; solution-oriented in providing information; safe and efficient; easy to install. Matching pictograms: A403-B, A403-BW, A403-L/R and A403-O.

Application
Emergency lighting

Type
Spot Seoul

Approvals
Downloads

Download Handleiding
Specifications
Merk (origineel) Taurac Basic

Article number I1D14601

Kind Spot

Mounting method Surface mounting/recessed mounting

Function Escape route signage

Suitable for labelling type Acrylic plate

Type of indicator Single/double-sided

Monitoring equipment Test button

Wiring system Continuous circuit/emergency circuit

Power supply system Peripheral (individual battery)

Battery quality Lithium-ions

Lamp type LED not exchangeable

Lamp holder None

Housing material Plastic

Housing colour White

Material cover Without cover

Voltage type AC/DC

Nominal voltage (V) 220 - 240

Type of control gear LED operating device current-controlled

Light distributor None

Energy efficiency class of the light source according to EU regulation 2019/2015 Not required

Rated life time L70/B50 at 25 °C (h) 50000

Degree of protection (IP) IP20

Impact strength IK02

Protection class II

Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40

Max. system power (W) 3

Colour temperature (K) 6000 - 6000

Power factor 0,54

Recognition distance (m) 20

Nominal operation time (h) 50000 - 50000

Outer diameter (mm) 124

Built-in height/depth (mm) 47,50

Built-in diameter (mm) 105

Type of wiring Ending

Number of poles 2

Conductor cross section (mm²) 0,50

Connection type Plug-in connection

Rechargeable Yes

Unit Piece

Warranty (months) 36
