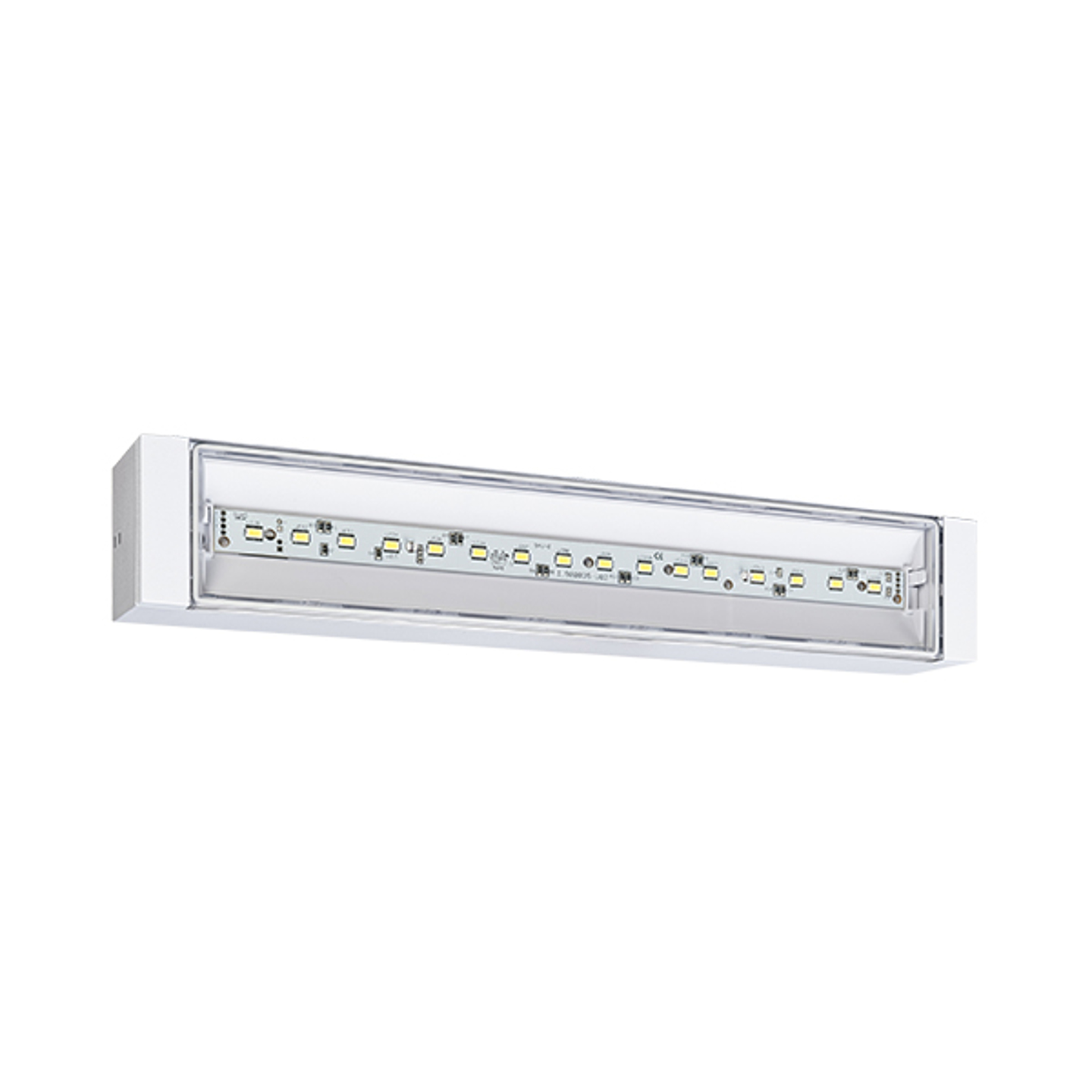

Universal London Self contained Ceiling / wall surface mounted, automatic self test, Open area, IP65

Article number PO7D511112
  • Description

    Combination luminaire available in both emergency lighting, signaling and as a combination. Wall/ceiling mounting, and by means of a mounting frame also easy to build in. This IP65 luminaire with Plexiglas plate is a rare combination in the market. Also available with a special lens technology making the installation height up to 23 meters. 5 year warranty.

    Application
    Offices, stores, schools, restaurants, museums, care- and educational institutions

    Type
    Universal London

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5 keurmerk_6
  • Downloads

  • Specifications

    • Merk (origineel) Taurac Premium
    • Article number PO7D511112
    • Kind Plexi glass plate
    • Mounting method Wall surface mounting/ceiling surface mounting
    • Function Escape route lighting
    • Monitoring equipment Automatic self test
    • Power supply system Peripheral (individual battery)
    • Battery quality NiMH
    • Lamp type LED not exchangeable
    • With light source Yes
    • Lamp holder None
    • Housing material Plastic
    • Housing colour White
    • Material cover Plastic, transparent
    • Voltage type AC/DC
    • Nominal voltage (V) 230 - 230
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Rated life time L70/B50 at 25 °C (h) 100000
    • Degree of protection (IP) IP65
    • Impact strength IK04
    • Protection class II
    • Max. system power (W) 3,60
    • Rated luminous flux according to IEC 62722-2-1 (lm) 380
    • Luminous flux in standby mode (lm) 380
    • Power factor 6
    • Nominal operation time (h) 1 - 1
    • Width (mm) 336
    • Height/depth (mm) 54
    • Length (mm) 59
    • Type of wiring Suitable for through wiring
    • Connection type Plug-in connection
    • Unit Piece
    • Warranty (months) 60
Article number PO7D511112

Universal London Self contained Ceiling / wall surface mounted, automatic self test, Open area, IP65
