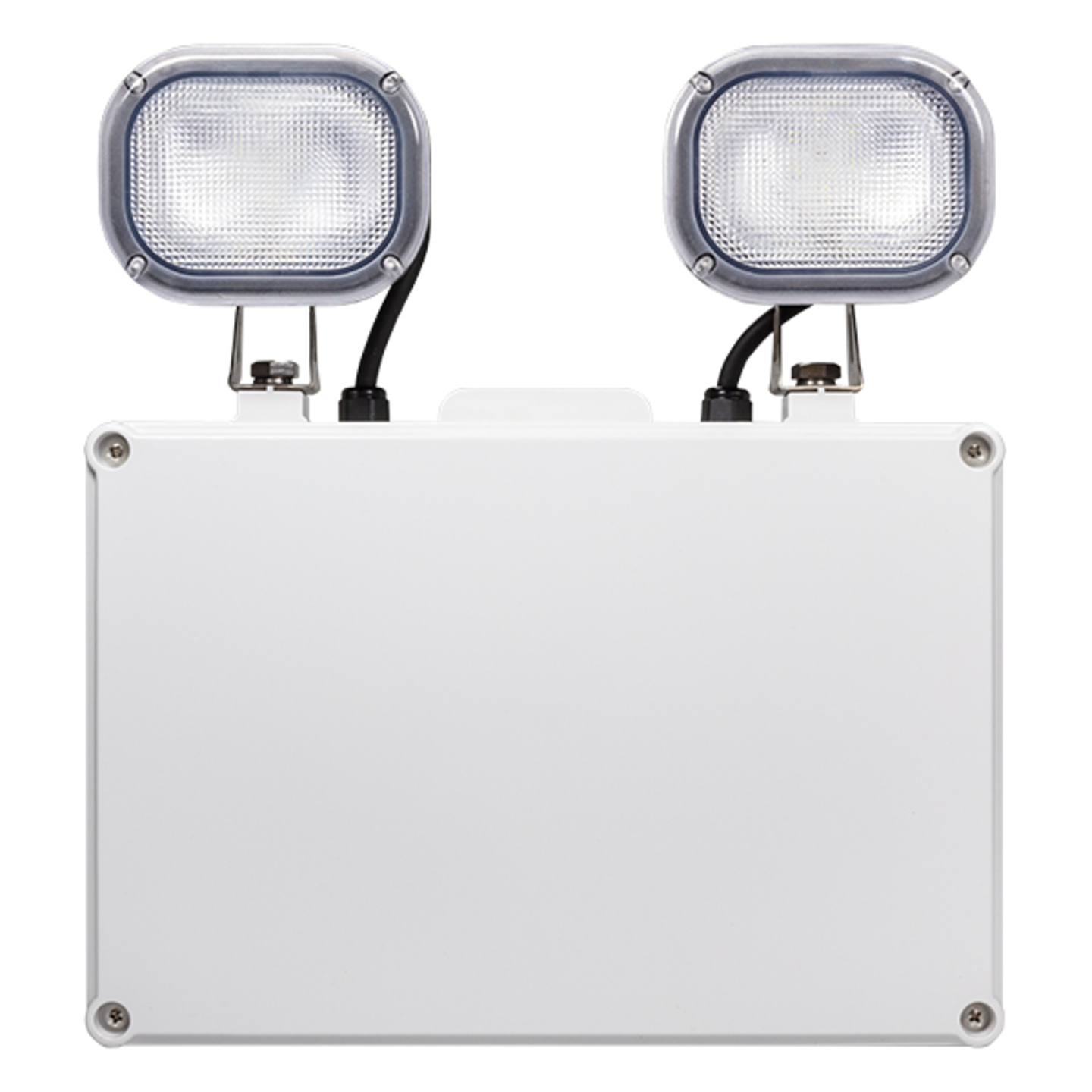

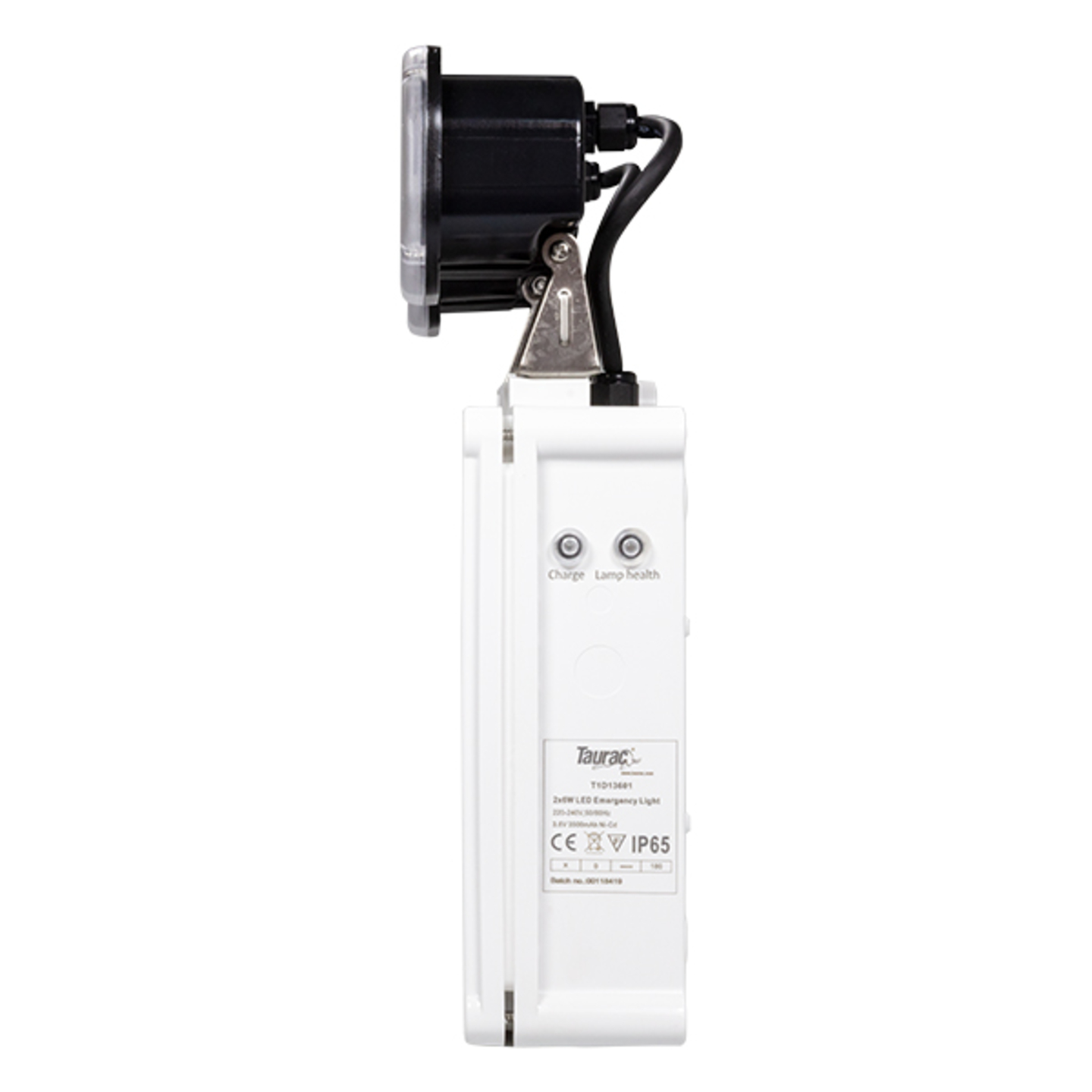

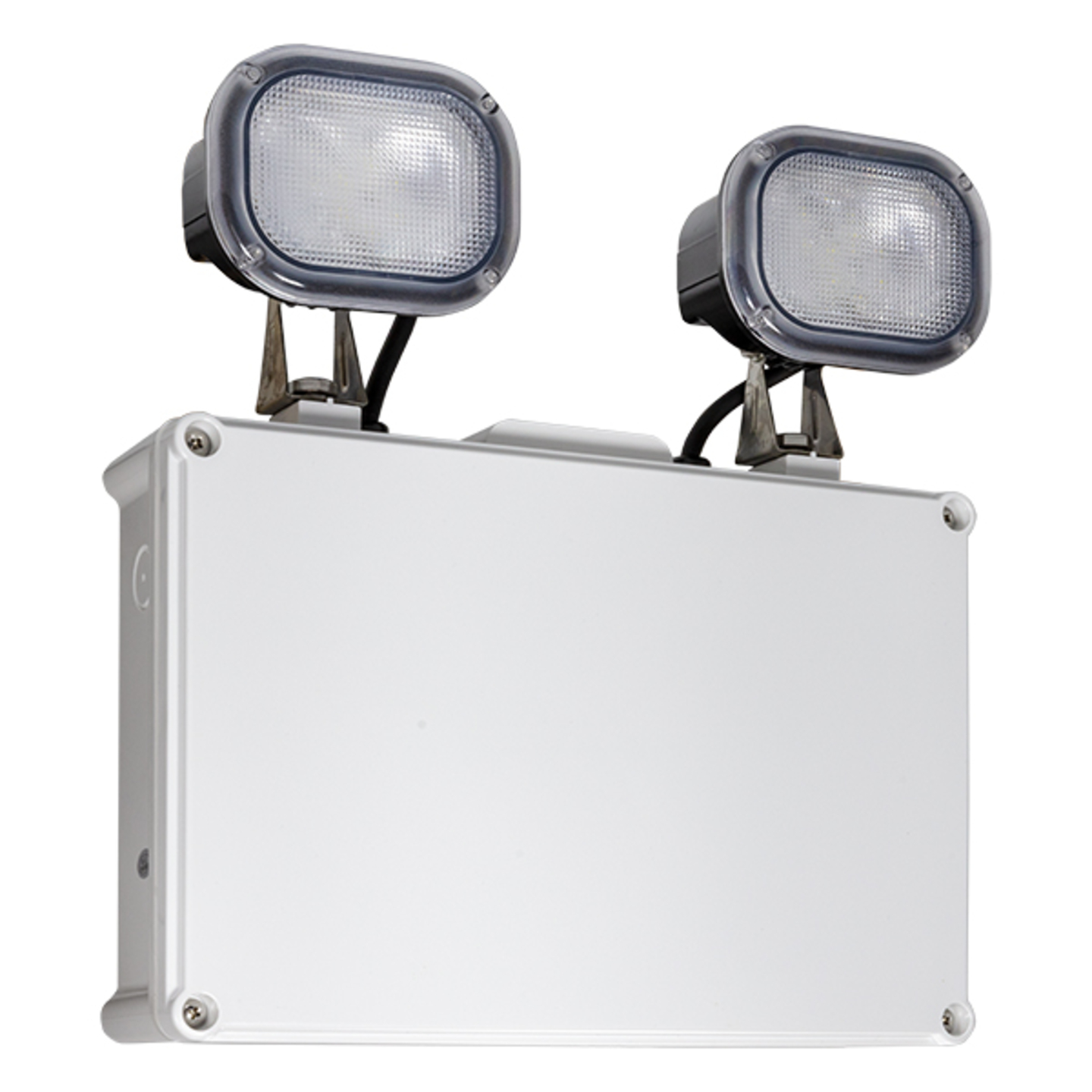

Twin Delhi self contained Wall surface mounted IP65 2 x 2W Test button

Article number T1D13601
zoom_in Zoom

  • Description

    600 lumens (2 x 300). Are often used in event halls, marquees and other locations where you do not always hang emergency lighting. Suitable for lighting large areas. This is lighting (not signaling or emergency lighting). IP65 protection.

    Application
    Warehouses, workshops, production areas, car parks, shops, event venues and museums

    Type
    Twin Delhi

    Approvals

    keurmerk_0 keurmerk_1 keurmerk_2 keurmerk_3 keurmerk_4 keurmerk_5

  • Downloads

    descriptionDownload Handleiding

  • Specifications

    • Merk (origineel) Taurac Basic
    • Article number T1D13601
    • Kind Twinspot
    • Mounting method Wall surface mounted
    • Function Escape route lighting
    • Monitoring equipment None
    • Wiring system Standby switching
    • Power supply system Peripheral (individual battery)
    • Battery quality NiCd
    • Lamp type LED not exchangeable
    • Lamp holder None
    • Number of lighting heads 2
    • Housing material Plastic
    • Housing colour White
    • Material cover Without cover
    • Voltage type DC
    • Nominal voltage (V) 220 - 240
    • Type of control gear LED operating device current-controlled
    • Light distributor Diffuser lens/optic/panel
    • Energy efficiency class of the light source according to EU regulation 2019/2015 Not required
    • Degree of protection (IP) IP65
    • Impact strength IK07
    • Protection class II
    • Rated ambient temperature according to IEC 62722-2-1 (°C) 0 - 40
    • Max. system power (W) 4
    • Luminous flux in standby mode (lm) 400
    • Colour temperature (K) 6000 - 6000
    • Power factor 0,80
    • Width (mm) 95
    • Height/depth (mm) 300
    • Length (mm) 280
    • Type of wiring Ending
    • Number of poles 3
    • Conductor cross section (mm²) 0,50
    • Connection type Plug-in connection
    • Rechargeable Yes
    • Unit Piece
    • Warranty (months) 36
Article number T1D13601

Twin Delhi self contained Wall surface mounted IP65 2 x 2W Test button
